3106A 0105000

Active

Belden Inc.

MULTI-PAIR 3COND 22AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 3COND 22AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	3106A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Number of Conductors	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Cable Type	Voltage	Conductor Insulation	Shield Type	Conductor Material	Number of Conductors	Jacket Color	Features	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 3106A 0105000	7.62 mm	0.3 in	22 AWG	Poly-Vinyl Chloride (PVC)	65 % 100 %	-20 C	60 °C	Aluminum Copper Tinned	Multi-Pair	300 V	Foam High Density Polyethylene (FHDPE)	Braid Foil	Copper Tinned	3	Black	Drain Wire	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 2.85

General part information

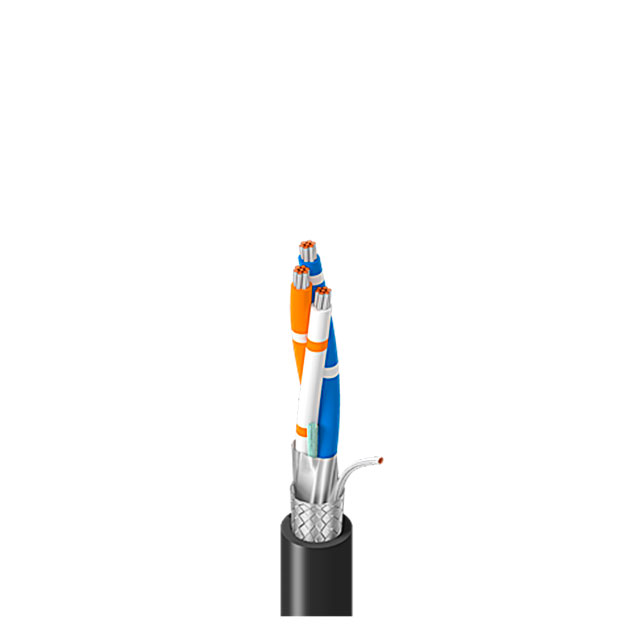

3 (1.5 Pair Twisted) Conductor Multi-Pair Cable Black 22 AWG Foil, Braid 5000' (1524.0m)
