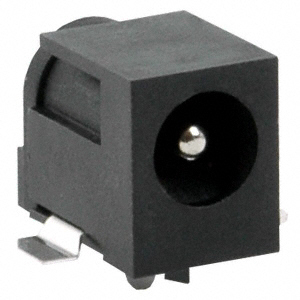

PJ-037AH-SMT-TR

Obsolete

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PJ-037AH-SMT-TR

Obsolete

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-037AH-SMT-TR

Actual Diameter	6.3 mm, 2 mm
Actual Diameter [diameter]	0.079 in, 0.248 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Solder Retention, Board Guide
Gender	Male
Housing Material	Polyamide (PA6T), Nylon 6T
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.36 in
Mating Length/Depth	9.15 mm
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

PJ-037 Series

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Mating Length/Depth	Mating Length/Depth	Body Color	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts	Internal Switch(s)	Connector Type	Material Flammability Rating	Mounting Type	Contact Material - Plating [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Termination	Shielding	Contact Material	Current Rating (Amps)	Features	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Mating Length/Depth [custom]	Mating Length/Depth [custom]	Actual Diameter	Contact Material - Plating
CUI Devices PJ-037BH-SMT-TR	24 VDC	-25 °C	85 °C	0.36 in	9.15 mm	Black	Male	2.5 mm 6.3 mm	0.098 in 0.248 in	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	UL94 V-0	Surface Mount Right Angle	Silver	2.5 mm 5.5 mm	0.098 " 0.217 "	Solder	Unshielded	Brass Copper Alloy	5 A	Solder Retention	Polyamide (PA6T) Nylon 6T
CUI Devices PJ-037AH	24 VDC	-25 °C	85 °C			Black	Male		0.079 in 0.256 in			Jack	UL94 V-0	Through Hole Right Angle	Silver	2.1 mm 5.5 mm	0.083 in 0.217 "	Solder Eyelet(s)	Unshielded	Brass Copper Alloy	5 A		Polybutylene Terephthalate (PBT)	2	2	9 mm	0.354 in	2 mm 6.5 mm
CUI Devices PJ-037B	24 VDC	-25 °C	85 °C	0.386 in	9.8 mm	Black	Male					Jack	UL94 V-0	Through Hole Right Angle		2.5 mm 5.5 mm	0.098 " 0.217 "	Solder Eyelet(s)	Unshielded	Brass Copper Alloy	2.5 A		Polybutylene Terephthalate (PBT)	2	2				Tin
CUI Devices PJ-037AH-SMT-TR	24 VDC	-25 °C	85 °C	0.36 in	9.15 mm	Black	Male		0.079 in 0.248 in	2 Conductors 3 Conductors	Normally Closed Single Switch	Jack	UL94 V-0	Surface Mount Right Angle Through Hole	Silver	2.1 mm 5.5 mm	0.083 in 0.217 "	Solder	Unshielded	Brass Copper Alloy	5 A	Board Guide Solder Retention	Polyamide (PA6T) Nylon 6T					2 mm 6.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PJ-037 Series

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Surface Mount, Right Angle; Through Hole
