BU-110-2

Active

MUELLER ELECTRIC

CONN TEST CLIP M CRIMP ST CABLE MOUNT 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBU-60 Series Datasheet Datasheet +1

BU-110-2

Active

MUELLER ELECTRIC

CONN TEST CLIP M CRIMP ST CABLE MOUNT 1 PORT

Deep-Dive with AI

DocumentsBU-60 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU-110-2	BU-110 Series

Color	Red	Red, Black
Current Rating (Amps)	10 A	10 A
Insulation	Insulated	Insulated
Jaw Opening	11.18 mm	11.18 mm
Jaw Opening	0.44 in	0.44 in
Length	49 mm	49 mm
Length [x]	1.929 in	1.929 in
Material - Insulation	Nylon	Nylon
Plating	Nickel	Nickel
Quantity	1 Box	1 Box
Ratings	CAT V 600V, CAT II 1000V	CAT V 600V, CAT II 1000V
Termination	Banana, Female Socket (Jack)	Banana, Female Socket (Jack)
Voltage - Rated	1000 V, 600 VDC	600 - 1000 V

BU-110 Series

CONN TEST CLIP M CRIMP ST CABLE MOUNT 1 PORT

Part	Termination	Jaw Opening	Jaw Opening	Voltage - Rated	Material - Insulation	Quantity	Insulation	Plating	Ratings	Current Rating (Amps)	Length	Length [x]	Color
MUELLER ELECTRIC BU-110-2	Banana, Female Socket (Jack)	11.18 mm	0.44 in	600 VDC, 1000 V	Nylon	1 Box	Insulated	Nickel	CAT II 1000V, CAT V 600V	10 A	49 mm	1.929 in	Red
MUELLER ELECTRIC BU-110-0	Banana, Female Socket (Jack)	11.18 mm	0.44 in	600 VDC, 1000 V	Nylon	1 Box	Insulated	Nickel	CAT II 1000V, CAT V 600V	10 A	49 mm	1.929 in	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.82
		10	$ 2.30
		100	$ 2.19
		500	$ 2.12
		1000	$ 2.08
Newark	Each	100	$ 3.00
		500	$ 2.81
		1000	$ 2.58
		2500	$ 2.35

Description

General part information

BU-110 Series

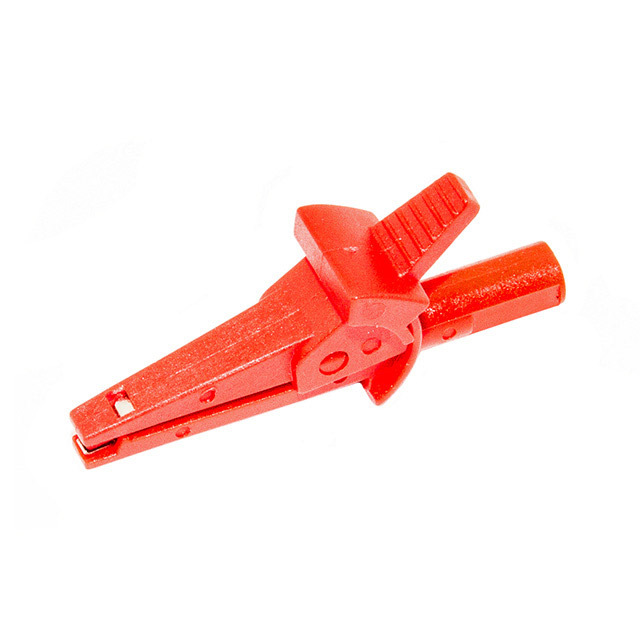

The BU-110-2 from Mueller Electric is a fully insulated mini‐clip. The built-in banana jack connects to any shrouded, unshrouded or retractable 4mm banana plug.

Documents

Technical documentation and resources

BU-60 Series Datasheet

Datasheet

Technical Data Sheet EN

Datasheet
