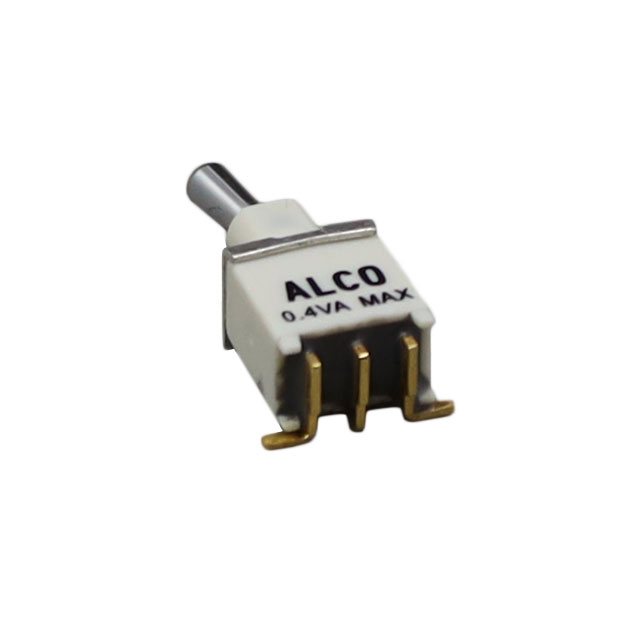

TBS2T2A1MTRES
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TBS2T2A1MTRES
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TBS2T2A1MTRES |
|---|---|
| Actuator Length [x] | 6.1 mm |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 30000 Cycles |
| Features | Process Sealed |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Mom |
| Termination Style | SMD (SMT) Tab |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.11 | |
| 10 | $ 5.50 | |||
| 25 | $ 5.23 | |||
| 50 | $ 5.01 | |||
Description
General part information
TBS2T Series
Toggle Switch SPDT Surface Mount, Right Angle
