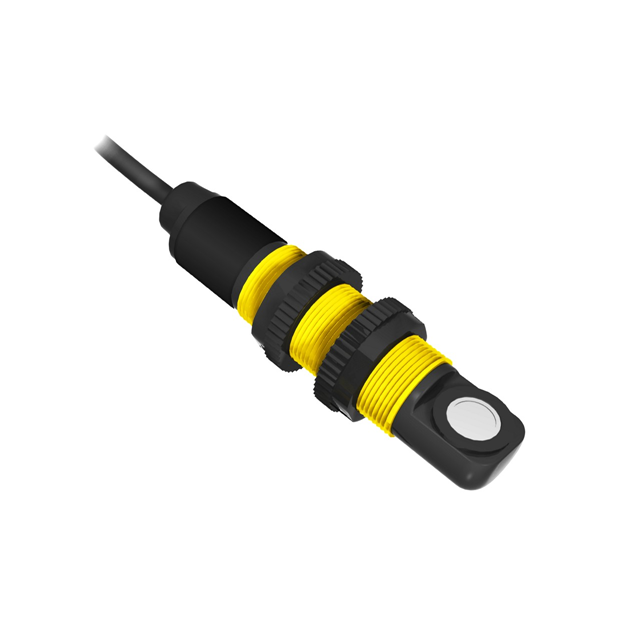

S18UUAR
ActiveULTRASONIC SENSOR, U-GAGE™ S18U SERIES, RIGHT ANGLE, 300 MM, 0 TO 10 VDC, 10 TO 30 VDC, CABLE
Deep-Dive with AI
Search across all available documentation for this part.
S18UUAR
ActiveULTRASONIC SENSOR, U-GAGE™ S18U SERIES, RIGHT ANGLE, 300 MM, 0 TO 10 VDC, 10 TO 30 VDC, CABLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S18UUAR |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67, NEMA 6P |
| Material - Body | Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | Analog Voltage |
| Package / Case | Cylinder, Threaded |
| Sensing Distance [Max] | 300 mm, 11.811 in |
| Sensing Distance [Min] | 30 mm, 1.181 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S18UU Series
The S18UUAR from Banner Engineering is an Ultrasonic Sensor with discrete output and TEACH-Mode programming. The U-GAGE™ S18U series sensor emit one or multiple pulses of ultrasonic energy, which travel through the air at the speed of sound. A portion of this energy reflects off the target and travels back to the sensor. The sensor measures the total time required for the energy to reach the target and return to the sensor. To improve accuracy, an ultrasonic sensor may average the results of several pulses before outputting a new value. The speed of sound is dependent upon the composition, pressure and temperature of the gas in which it is travelling. For most ultrasonic applications, the composition and pressure of the gas are relatively fixed, while the temperature may fluctuate.
