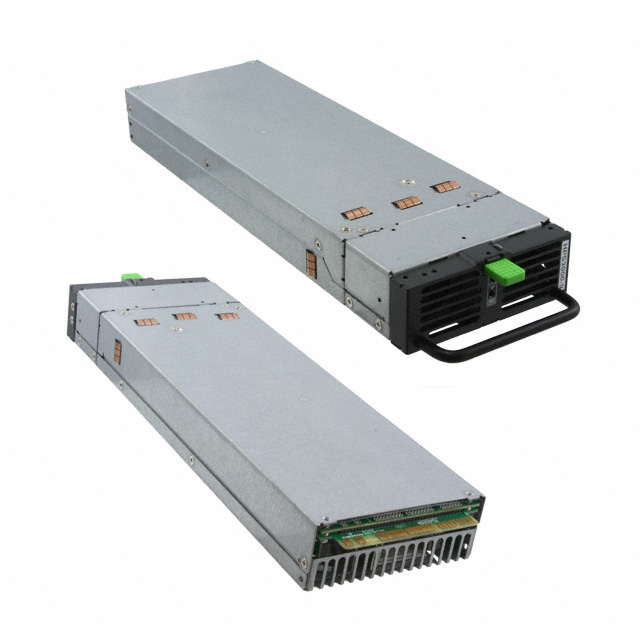

Specification	HPS3000-9

Applications	ITE (Commercial)
Approval Agency	CB
Current - Output 1	62 A
Efficiency	90 %
Features	Universal Input, I2C Interface, PMBus™, PFC, Hot Swappable, Standby Output, Load Sharing
Minimum Load Required	No
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	3000 W
Size / Dimension Height	1.57 in
Size / Dimension Length	12.9 in
Size / Dimension Width	4.2 in
Type	Front End
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output 1	48 V

HPS3000 Series

Part	Minimum Load Required	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Operating Temperature (Min)	Operating Temperature (Max)	Efficiency	Number of Outputs	Power (Watts)	Approval Agency	Current - Output 1	Type	Applications	Mounting Type	Voltage - Output 1	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Features
ARTESYN / Advanced Energy HPS3000-9	No	90 V	264 V	-10 °C	40 °C	90 %	1	3000 W	CB	62 A	Front End	ITE (Commercial)	Rack Mount	48 V	12.9 in	4.2 in	1.57 in	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Standby Output Universal Input
