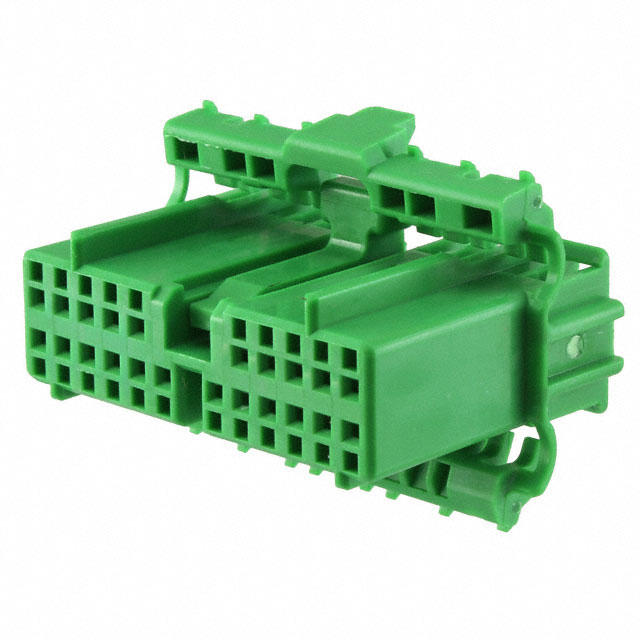

IL-AG5-22S-D3C1

Active

JAE Electronics

P=2.5MM HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Search across all available documentation for this part.

Active

JAE Electronics

P=2.5MM HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	IL-AG5-22S-D3C1

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	22 positions
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

Part	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Applications	Current Rating (Amps)	Number of Positions	Contact Finish - Post	Contact Type	Shrouding	Style	Fastening Type	Insulation Height	Insulation Height	Insulation Color	Connector Type	Termination	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Features	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing [x]	Row Spacing [x]	Contact Termination	Pitch [x]	Pitch [x]	Note	Color
JAE Electronics IL-AG5-22P-D3L2	Polybutylene Terephthalate (PBT)	3 mm	0.118 in	Automotive	3 A	22 positions	Tin	Male Pin	Shrouded - 4 Wall	Board to Cable/Wire	Push-Pull	0.591 in	15 mm	Green	Header	Solder	2.5 mm	0.098 in	2	Brass	Through Hole Right Angle	8.4 mm	0.331 in	Board Guide	All	3.5 mm	0.138 in	Square	85 °C	-40 °C
JAE Electronics IL-AG5-22P-D3C1	Polybutylene Terephthalate (PBT)					22 positions		Male Pin							Plug				2		Free Hanging (In-Line)								85 °C	-40 °C	0.118 in	3 mm	Crimp	0.098 in	2.5 mm	Contacts Not Included	Green
JAE Electronics IL-AG5-22S-D3C1	Polybutylene Terephthalate (PBT)					22 positions		Female Socket							Receptacle				2		Free Hanging (In-Line)								85 °C	-40 °C	0.118 in	3 mm	Crimp	0.098 in	2.5 mm	Contacts Not Included	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Rectangular Connectors - Housings Receptacle Green 0.098" (2.50mm)
