35HDNNS

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM 3COND

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG STEREO 3.5MM 3COND

Technical Specifications

Parameters and characteristics for this part

Specification	35HDNNS

Actual Diameter [diameter]	0.138 "
Actual Diameter [diameter]	3.5 mm
Body Color	Silver
Body Material	Brass
Cable Opening [diameter]	0.175 in
Cable Opening [diameter]	4.45 mm
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating	Tin
Current Rating (Amps)	4 A
Gender	Male
Housing Material	Brass

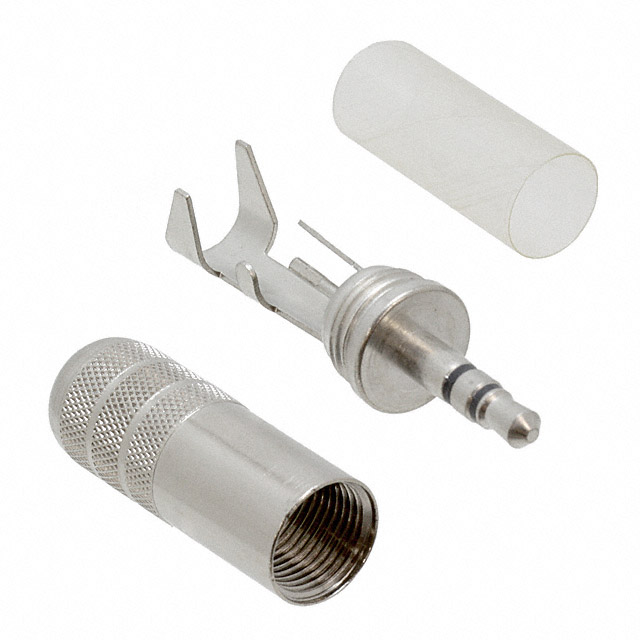

Includes	1 Connector, 1 Insulator Tube, 1 Handle
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mating Length/Depth	14.2 mm
Mating Length/Depth	0.56 in
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder

CONN PLUG STEREO 3.5MM 3COND

Part	Body Material	Termination	Signal Lines	Shielding	Gender	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Current Rating (Amps)	Body Color	Mating Length/Depth	Mating Length/Depth	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Connector Type	Contact Material	Includes	Contact Material - Plating	Actual Diameter [diameter]	Actual Diameter [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Internal Switch(s)	Mounting Type
Switchcraft Inc. 35HDNNS	Brass	Solder	Stereo	Unshielded	Male	0.141 "	0.125 "	3.5 mm	4 A	Silver	14.2 mm	0.56 in	3	3	Brass	Phone Plug	Brass	1 Connector, 1 Handle, 1 Insulator Tube	Tin	0.138 "	3.5 mm	0.175 in	4.45 mm		Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder
