General part information

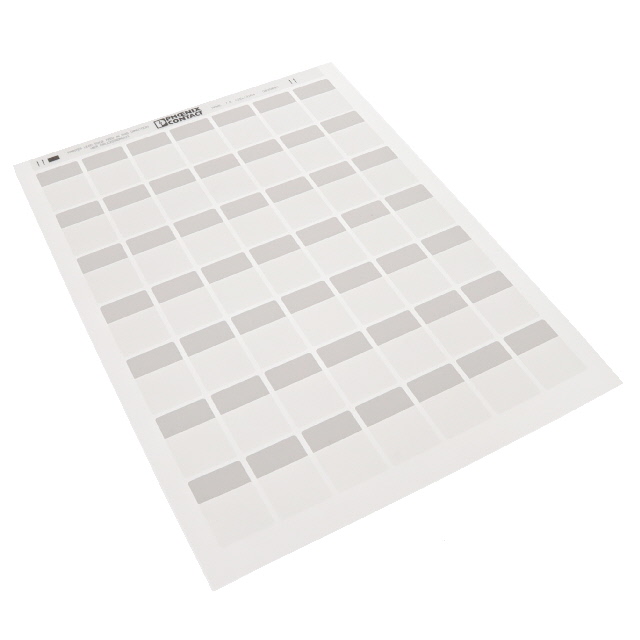

White Standard Label 0.98" x 1.25" (25.0mm x 31.8mm); Cable O.D. 0.30" (7.5mm)
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 0830691 | WML Series |
|---|---|---|
| Cable Diameter | - | 5 mm |
| Cable Diameter | - | 0.197 in |
| Color | White | White, Yellow |
| For Use With/Related Products | Office Printing Systems | Office Printing Systems, Thermomark Printer |
| Label Size | - | 0.984 in |
| Label Size | - | 1 in |
| Label Size | - | 0.197 in |
| Label Size [diameter] | 7.5 mm | 3 - 7.5 mm |
| Label Size [diameter] | 0.3 in | 0.118 - 0.3 in |
| Label Size [x] | 25 mm | 2.4 - 25 mm |
| Label Size [x] | 0.98 in | 0.094 - 0.98 in |
| Label Size [y] | 1.25 " | 0.748 - 1.25 in |
| Label Size [y] | 31.8 mm | 1.25 - 31.8 mm |
| Label Type | Standard | Standard |
| Legend | - | Blank |
| Material | Polyester | Polyester, Poly-Vinyl Chloride (PVC) |
| Operating Temperature | - | -50 °C |
| Operating Temperature | - | 110 °C |
| Size | - | 0.09 - 2.4 mm |
| Size | - | 25.4 mm |
| Type | - | Wire Marker, Cable Tie |
LABEL STANDARD 0.512"X0.748" WHT
| Part | Material | Label Type | For Use With/Related Products | Label Size [diameter] | Label Size [x] | Label Size [x] | Label Size [diameter] | Label Size [y] | Label Size [y] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Label Size [x] | Label Size [y] | Label Size [diameter] | Legend | Size [x] | Size [y] | Cable Diameter [diameter] | Cable Diameter [diameter] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0830687 | Polyester | Standard | Office Printing Systems | 0.118 in | 13 mm | 0.512 in | 3 mm | 0.748 in | 19 mm | White | |||||||||||
Phoenix Contact 0830674 | Standard | Thermomark Printer | 0.236 in | 12.7 mm | 0.5 " | 6 mm | 1.25 " | 1.25 " | Yellow | -50 °C | 110 °C | ||||||||||
Phoenix Contact 0830673 | Standard | Thermomark Printer | 0.197 in | 2.4 mm | 0.094 in | 5 mm | 1 in | 25.4 mm | Yellow | -50 °C | 110 °C | ||||||||||
Phoenix Contact 0830689 | Polyester | Standard | Office Printing Systems | 25 mm | 5 mm | 25.4 mm | White | 0.984 in | 1 in | 0.197 in | |||||||||||
Phoenix Contact 0830676 | Poly-Vinyl Chloride (PVC) | White | -50 °C | 110 °C | Blank | 0.09 in, 2.4 mm | 25.4 mm | 5 mm | 0.197 in | Wire Marker, Cable Tie | |||||||||||
Phoenix Contact 0830691 | Polyester | Standard | Office Printing Systems | 0.3 in | 25 mm | 0.98 in | 7.5 mm | 1.25 " | 31.8 mm | White |
