0830687

Active

Phoenix Contact

LABEL STANDARD 0.512"X0.748" WHT

Search across all available documentation for this part.

Active

Phoenix Contact

LABEL STANDARD 0.512"X0.748" WHT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

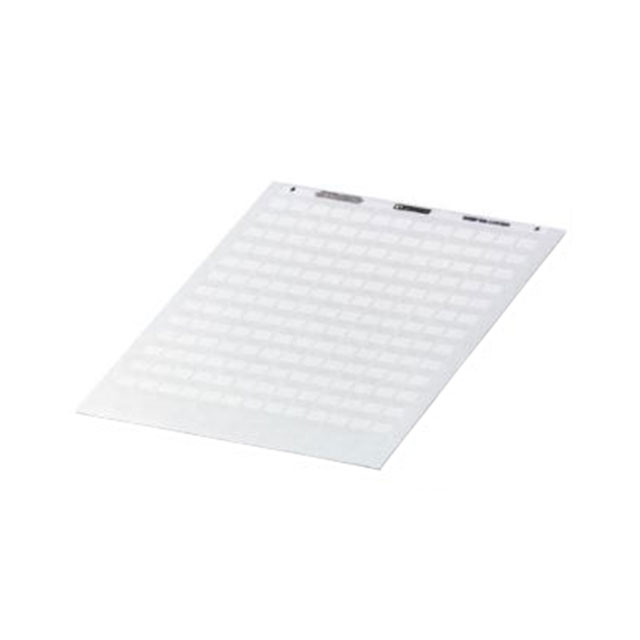

White Standard Label 0.512" L x 0.748" W (13.00mm x 19.00mm); Cable O.D. 0.118" (3.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	0830687	WML Series

Cable Diameter	-	5 mm
Cable Diameter	-	0.197 in
Color	White	White, Yellow
For Use With/Related Products	Office Printing Systems	Office Printing Systems, Thermomark Printer
Label Size	-	0.984 in
Label Size	-	1 in
Label Size	-	0.197 in
Label Size [diameter]	0.118 in	0.118 - 0.3 in
Label Size [diameter]	3 mm	3 - 7.5 mm
Label Size [x]	13 mm	2.4 - 25 mm
Label Size [x]	0.512 in	0.094 - 0.98 in
Label Size [y]	0.748 in	0.748 - 1.25 in
Label Size [y]	19 mm	1.25 - 31.8 mm
Label Type	Standard	Standard
Legend	-	Blank
Material	Polyester	Polyester, Poly-Vinyl Chloride (PVC)
Operating Temperature	-	-50 °C
Operating Temperature	-	110 °C
Size	-	0.09 - 2.4 mm
Size	-	25.4 mm
Type	-	Wire Marker, Cable Tie

LABEL STANDARD 0.512"X0.748" WHT

Part	Material	Label Type	For Use With/Related Products	Label Size [diameter]	Label Size [x]	Label Size [x]	Label Size [diameter]	Label Size [y]	Label Size [y]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [x]	Label Size [y]	Label Size [diameter]	Legend	Size [x]	Size [y]	Cable Diameter [diameter]	Cable Diameter [diameter]	Type
Phoenix Contact 0830687	Polyester	Standard	Office Printing Systems	0.118 in	13 mm	0.512 in	3 mm	0.748 in	19 mm	White
Phoenix Contact 0830674		Standard	Thermomark Printer	0.236 in	12.7 mm	0.5 "	6 mm	1.25 "	1.25 "	Yellow	-50 °C	110 °C
Phoenix Contact 0830673		Standard	Thermomark Printer	0.197 in	2.4 mm	0.094 in	5 mm	1 in	25.4 mm	Yellow	-50 °C	110 °C
Phoenix Contact 0830689	Polyester	Standard	Office Printing Systems		25 mm		5 mm		25.4 mm	White			0.984 in	1 in	0.197 in
Phoenix Contact 0830676	Poly-Vinyl Chloride (PVC)									White	-50 °C	110 °C				Blank	0.09 in, 2.4 mm	25.4 mm	5 mm	0.197 in	Wire Marker, Cable Tie
Phoenix Contact 0830691	Polyester	Standard	Office Printing Systems	0.3 in	25 mm	0.98 in	7.5 mm	1.25 "	31.8 mm	White
