5280-7SG-3DC

Active

Conxall/Switchcraft

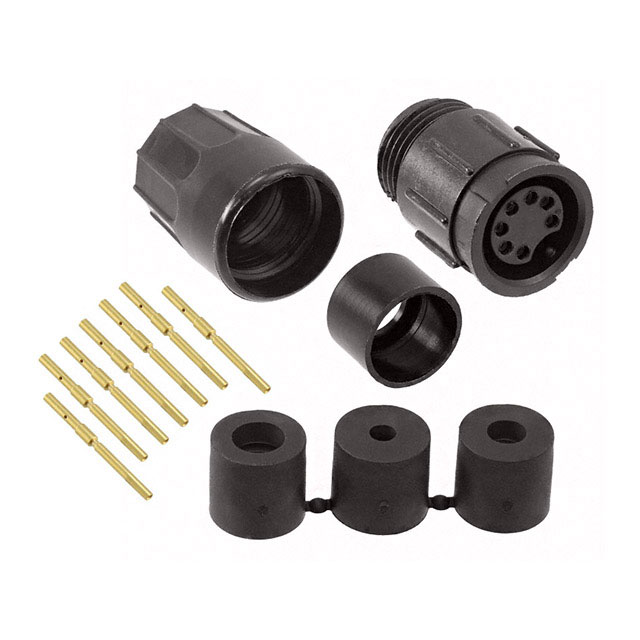

CONN RCPT FMALE 7POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5280-7SG-3DC

Active

Conxall/Switchcraft

CONN RCPT FMALE 7POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.64
		10	$ 10.32
		25	$ 9.92

Description

General part information

5280-7SG Series

7 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5280-7SG-3DC	5280-7SG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	8.13 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	7	7
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

5280-7SG Series

CONN RCPT FMALE 7POS GOLD CRIMP

Part	Connector Type	Mounting Type	Number of Positions	Shielding	Features	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Finish - Mating	Current Rating (Amps)	Termination	Voltage Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Contact Material	Primary Material	Ingress Protection	Color	Cable Opening [Max] [diameter]
Conxall/Switchcraft 5280-7SG-528	Receptacle, Female Sockets	Free Hanging (In-Line)	7	Unshielded	Backshell, Cable Clamp	Nylon, Polyamide (PA)	7.37 mm	7.11 mm	0.29 in	0.28 in	Gold	5.6 A	Crimp	600 V	Bayonet Lock	-40 °C	115 °C	Keyed	Brass	Plastic	Weathertight	Black
Conxall/Switchcraft 5280-7SG-330	Receptacle, Female Sockets	Free Hanging (In-Line)	7	Unshielded	Backshell	Nylon, Polyamide (PA)		7.62 mm	0.32 in	0.3 in	Gold	5.6 A	Crimp	600 V	Bayonet Lock	-40 °C	115 °C	Keyed	Brass	Plastic	Weathertight	Black	8.13 mm
Conxall/Switchcraft 5280-7SG-324	Receptacle, Female Sockets	Free Hanging (In-Line)	7	Unshielded	Backshell	Nylon, Polyamide (PA)	6.86 mm	6.1 mm	0.27 in	0.24 in	Gold	5.6 A	Crimp	600 V	Bayonet Lock	-40 °C	115 °C	Keyed	Brass	Plastic	Weathertight	Black
Conxall/Switchcraft 5280-7SG-530	Receptacle, Female Sockets	Free Hanging (In-Line)	7	Unshielded	Backshell, Cable Clamp	Nylon, Polyamide (PA)		7.62 mm	0.32 in	0.3 in	Gold	5.6 A	Crimp	600 V	Bayonet Lock	-40 °C	115 °C	Keyed	Brass	Plastic	Weathertight	Black	8.13 mm
Conxall/Switchcraft 5280-7SG-3DC	Receptacle, Female Sockets	Free Hanging (In-Line)	7	Unshielded	Backshell	Nylon, Polyamide (PA)					Gold	5.6 A	Crimp	600 V	Bayonet Lock	-40 °C	115 °C	Keyed	Brass	Plastic	Weathertight	Black
Conxall/Switchcraft 5280-7SG-328	Receptacle, Female Sockets	Free Hanging (In-Line)	7	Unshielded	Backshell	Nylon, Polyamide (PA)	7.37 mm	7.11 mm	0.29 in	0.28 in	Gold	5.6 A	Crimp	600 V	Bayonet Lock	-40 °C	115 °C	Keyed	Brass	Plastic	Weathertight	Black
Conxall/Switchcraft 5280-7SG-521	Receptacle, Female Sockets	Free Hanging (In-Line)	7	Unshielded	Backshell, Cable Clamp	Nylon, Polyamide (PA)	5.84 mm	5.33 mm	0.23 in	0.21 in	Gold	5.6 A	Crimp	600 V	Bayonet Lock	-40 °C	115 °C	Keyed	Brass	Plastic	Weathertight	Black
