C850-2C3R-54

Active

Bel Power Solutions

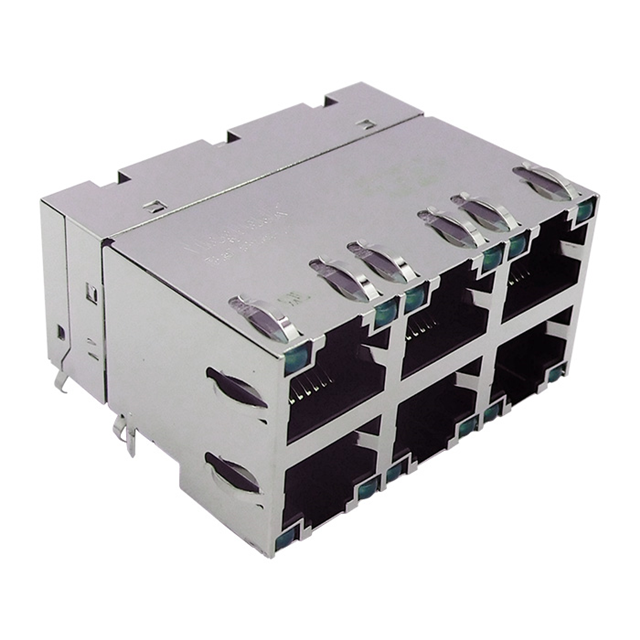

CONN JACK 6PORT PCB

Search across all available documentation for this part.

Active

Bel Power Solutions

CONN JACK 6PORT PCB

Technical Specifications

Parameters and characteristics for this part

Specification	C850-2C3R-54

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide
Height Above Board [z]	19.94 mm
Height Above Board [z]	0.785 in
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	6
Number of Rows	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Copper Alloy
Shielding	Shielded, EMI Finger
Tab Direction	Up and Down
Termination	Solder

CONN JACK 6PORT PCB

Part	LED Color	Mounting Type	Contact Material	Contact Finish	Tab Direction	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Cores per Jack	Applications	Height Above Board [z]	Height Above Board [z]	Number of Rows	Housing Material	Shield Material	Connector Type	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Number of Ports
Bel Power Solutions C850-2C3R-54	Green, Yellow	Through Hole	Copper Alloy	Gold	Up and Down	Shielded, EMI Finger	0.76 Ám	30 Áin	8	10/100/1000 Base-T, AutoMDIX	19.94 mm	0.785 in	2	Polybutylene Terephthalate (PBT)	Copper Alloy	RJ45	Board Guide	Solder	70 °C	0 °C	90 °	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX
