R143662000

Active

Radiall USA, Inc.

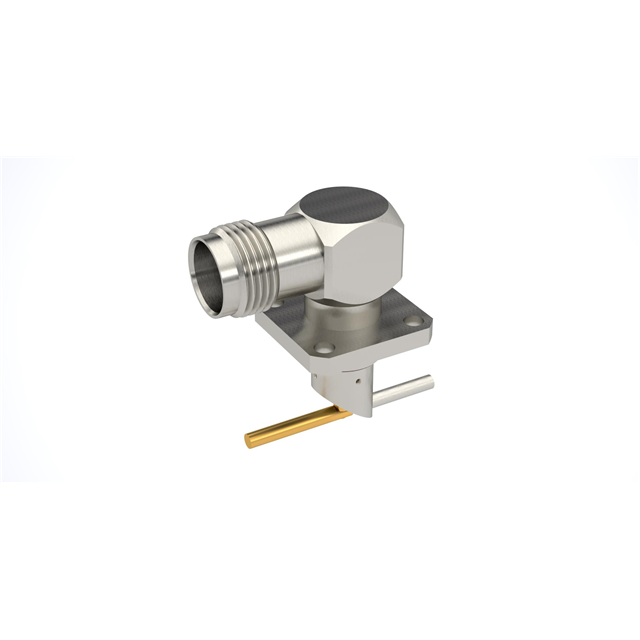

TNC / RIGHT ANGLE JACK RECEPTACL

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / RIGHT ANGLE JACK RECEPTACL

Technical Specifications

Parameters and characteristics for this part

Specification	R143662000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper, Nickel Steel
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Housing Color	Mounting Type	Contact Termination	Number of Ports	Mounting Feature	Connector Type	Body Finish	Connector Style	Body Material	Center Contact Plating	Mating Cycles	Frequency - Max [Max]	Center Contact Material	Impedance	Dielectric Material	Shield Termination	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R143662000	Silver	Panel Mount Right Angle	Solder Tab	1	Flange	Female Socket Jack	Nickel	TNC	Brass	Gold	500	11 GHz	Beryllium Copper Nickel Steel	50 Ohms	Polytetrafluoroethylene (PTFE)	Solder	500 V	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 132.78

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder Tab
