NL112BX

Active

Switchcraft Inc.

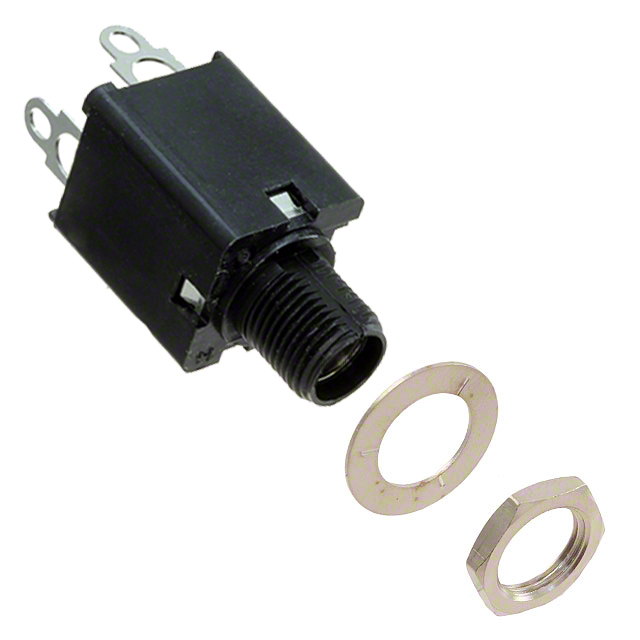

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	NL112BX

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating	Tin
Current Rating (Amps)	0.25 A
Features	Thread Lock, Mounting Hardware
Gender	Female
Includes	Connector, Washer, Nut
Internal Switch(s)	False
Mounting Type	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Panel Hole Size	0.375 in
Panel Hole Size	9.52 mm
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)
Thread Size	3/8"-32
Voltage - Rated [custom]	48 VDC

CONN JACK STEREO 6.35MM PNL MNT

Part	Contact Material	Contact Material - Plating	Mounting Type	Shielding	Body Color	Voltage - Rated [custom]	Thread Size	Gender	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Connector Type	Panel Hole Size	Panel Hole Size	Includes	Current Rating (Amps)	Signal Lines	Features	Actual Diameter [diameter]	Actual Diameter [diameter]	Internal Switch(s)
Switchcraft Inc. NL112BX	Brass	Tin	Panel Mount, Through Hole	Unshielded	Black	48 VDC	3/8"-32	Female	3	3	Solder Eyelet(s)	Phone Jack	0.375 in	9.52 mm	Connector, Nut, Washer	0.25 A	Stereo	Mounting Hardware, Thread Lock	0.25 in	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
