335-10-104-00-160000

Active

Mill-Max Manufacturing Corp.

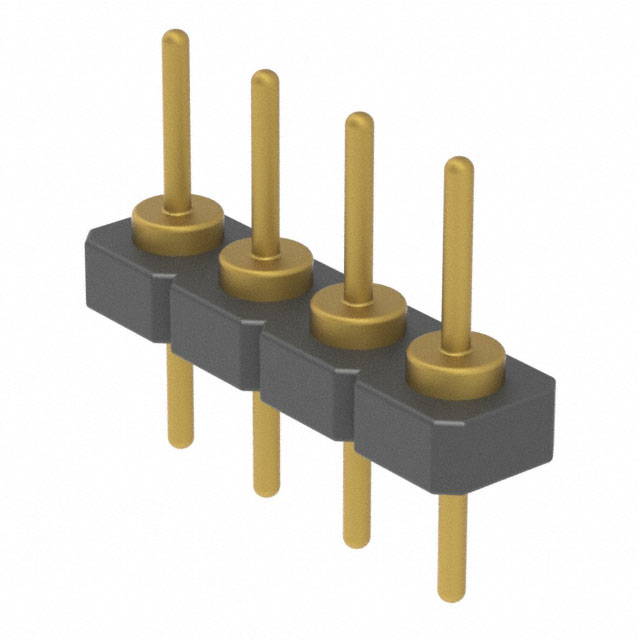

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

335-10-104-00-160000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	335-10-104-00-160000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.05 in
Insulation Height	1.27 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length [x]	0.299 in
Overall Contact Length [x]	7.6 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	100 V, 150 VDC

335-10 Series

Part	Contact Length - Mating	Contact Length - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Material	Contact Finish - Mating	Contact Material	Contact Shape	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Overall Contact Length [x]	Overall Contact Length [x]	Shrouding	Termination	Number of Positions Loaded	Number of Rows	Insulation Height	Insulation Height	Contact Type	Fastening Type	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 335-10-121-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	21	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-120-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	20	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-114-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	14	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-105-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm		0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-130-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	30	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-126-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	26	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-111-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	11	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-112-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	12	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-102-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	2	0.104 in	2.64 mm
Mill-Max Manufacturing Corp. 335-10-104-00-160000	0.125 in	3.18 mm	Black	0.1 in	2.54 mm	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Brass Alloy	Circular	Through Hole	10 çin	0.25 çm	100 V 150 VDC	0.299 in	7.6 mm	Unshrouded	Solder	All	1	0.05 in	1.27 mm	Male Pin	Push-Pull	Header	10 çin	0.25 çm	4	0.104 in	2.64 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.07
		51	$ 4.26
		102	$ 4.06
		510	$ 3.45
		1020	$ 2.94

Description

General part information

335-10 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)
