Q-020430001009i

Active

Amphenol Custom Cable

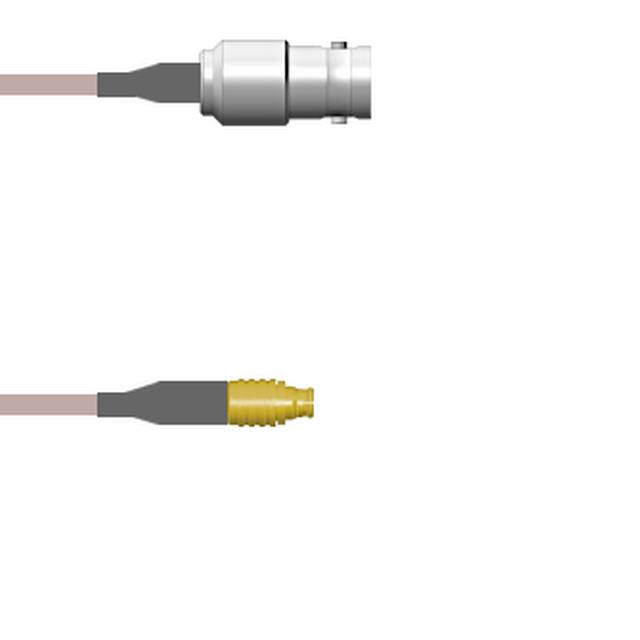

CBL ASSY BNC-SMP JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-020430001009i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMP JACK-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-020430001009i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMP Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to SMP

Q-020430 Series

Part	1st Contact Gender	2nd Connector Mounting Type	Cable Type	2nd Connector	1st Connector	2nd Contact Gender	Length	Length	Length	Overall Impedance	Style	Color	Frequency - Max [Max]	1st Connector Mounting Type	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-020430001072i	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male	6 ft	72 in	1.8 m	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-0204300011.5M	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male	4.9 ft	59.1 in	1.5 m	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-020430001108i	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male	9 ft	108 in	2.7 m	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-020430001018i	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male				50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-020430001024i	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male		24 "	609.6 mm	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-020430001012i	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male		12 "	304.8 mm	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-020430001009i	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male		9 "	228.6 mm	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-020430001048i	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male	4 ft	48 in	1200 mm	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-0204300010.5M	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male		19.69 "	50 cm	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded
Amphenol Custom Cable Q-020430001003i	Female	Free Hanging (In-Line)	RG-178	SMP Plug	BNC Jack	Male		3 in	76.2 mm	50 Ohms	BNC to SMP	Copper	4 GHz	Free Hanging (In-Line)	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 69.79
		25	$ 68.42
		50	$ 67.05
		100	$ 65.69
		250	$ 64.32

Description

General part information

Q-020430 Series

Cable Assembly Coaxial BNC to SMP RG-178 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
