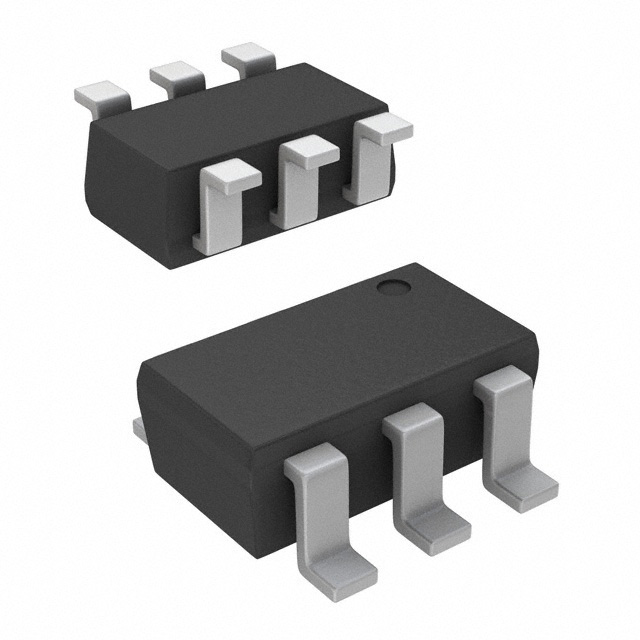

AS222-92LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 3GHZ SC70-6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS222-92LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 3GHZ SC70-6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS222-92LF |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 100 MHz |
| IIP3 | 44 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Isolation | 18 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 27 dB |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| RF Type | Bluetooth, WLAN |
| Supplier Device Package | SC-70-6 |
| Test Frequency | 3 GHz |
| Topology | Reflective |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.99 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.84 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 0.99 | ||
| 10 | $ 0.89 | |||
| 25 | $ 0.84 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.45 | |||
| Tape & Reel (TR) | 3000 | $ 0.42 | ||
| 6000 | $ 0.40 | |||
| 15000 | $ 0.38 | |||
Description
General part information
AS222-92 Series
RF Switch IC Bluetooth, WLAN SPDT 3 GHz 50Ohm SC-70-6
