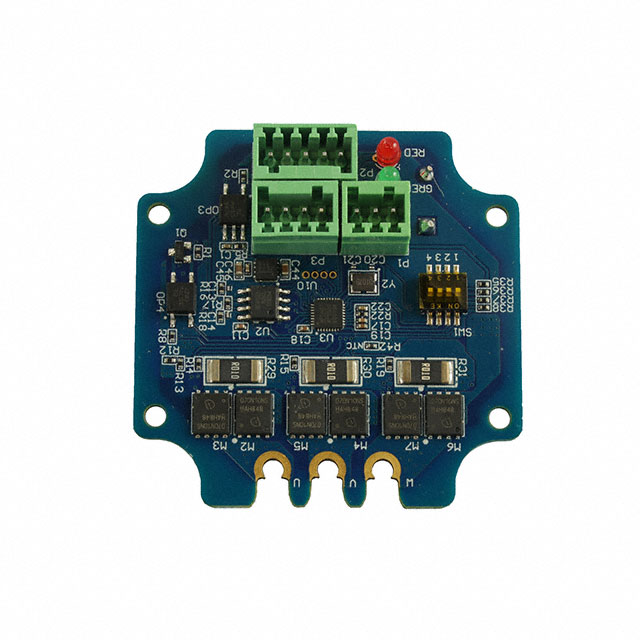

MMP757188-36-C

Obsolete

MONOLITHIC POWER SYSTEMS (MPS)

EMOTION SYSTEMTM SMART MOTOR CON

Search across all available documentation for this part.

Obsolete

MONOLITHIC POWER SYSTEMS (MPS)

EMOTION SYSTEMTM SMART MOTOR CON

Technical Specifications

Parameters and characteristics for this part

Specification	MMP757188-36-C

Control / Drive Type	Servo DC
For Use With/Related Products	MSM Series
Interface	Step / Direction, RS-485
Motor Type	Servo
Mounting Type	Chassis Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Type	Board
Voltage - Supply	36 V
Wattage - Load	188 W

Part	Voltage - Supply	Interface	Motor Type	Type	Control / Drive Type	Wattage - Load	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	For Use With/Related Products
MONOLITHIC POWER SYSTEMS (MPS) MMP757188-36-C	36 V	RS-485 Step / Direction	Servo	Board	Servo DC	188 W	Chassis Mount	70 °C	0 °C	MSM Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Servo DC 36VDC Supply Load

Technical documentation and resources

No documents available
