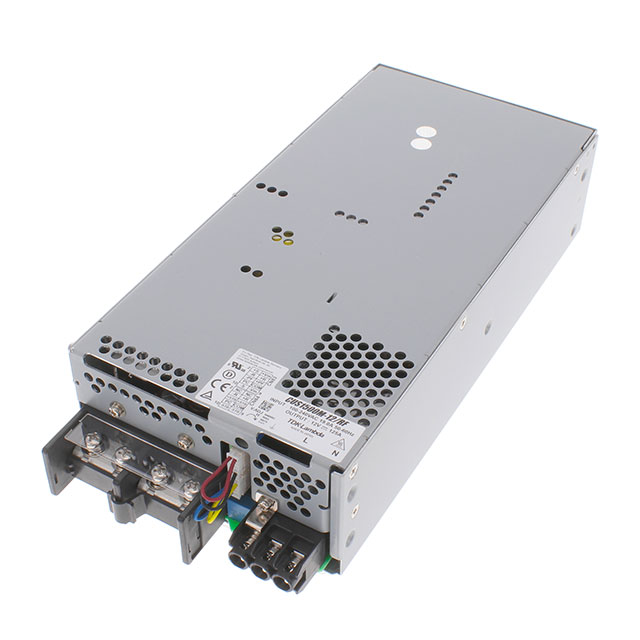

CUS1500M-12/RF

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.5 KW, 12 V, 125 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.5 KW, 12 V, 125 A

Technical Specifications

Parameters and characteristics for this part

Specification	CUS1500M-12/RF

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	125 A
Efficiency	85 %
Features	Adjustable Output, Remote Sense, Remote On/Off, Standby Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1500 W
Size / Dimension [x]	10.28 "
Size / Dimension [x]	261 mm
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	2.48 "
Size / Dimension [z]	63 mm
Type	Enclosed
Voltage - Input [Max]	340 VDC, 265 VAC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Voltage - Isolation	Features	Number of Outputs	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Approval Agency	Voltage - Output 1	Type	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 1
TDK-LAMBDA CUS1500M-12/RF	4000 V	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	1	ITE (Commercial) Medical	-20 °C	70 °C	1500 W	85 VAC 120 VDC	265 VAC 340 VDC	Chassis Mount	CE	12 V	Enclosed	85 %	127 mm	5 "	10.28 "	261 mm	2.48 "	63 mm	125 A
TDK-LAMBDA CUS1500M-12/SF	4000 V	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	1	ITE (Commercial) Medical	-20 °C	60 °C	1500 W	85 VAC 120 VDC	265 VAC 340 VDC	Chassis Mount	CE	12 V	Enclosed	85 %	127 mm	5 "	10.28 "	261 mm	2.48 "	63 mm	125 A
TDK-LAMBDA CUS1500M-48	4000 V	Adjustable Output Remote On/Off Remote Sense Standby Output	1	ITE (Commercial) Medical	-20 °C	60 °C	1.536 kW	85 VAC 120 VDC	265 VAC 340 VDC	Chassis Mount	CE	48 V	Enclosed	88 %	127 mm	5 "	10.28 "	261 mm	2.48 "	63 mm	32 A
TDK-LAMBDA CUS1500M-48/RF	4000 V	Adjustable Output Remote On/Off Remote Sense Standby Output Universal Input	1	ITE (Commercial) Medical	-20 °C	70 °C	1.536 kW	85 VAC 120 VDC	265 VAC 340 VDC	Chassis Mount	CE	48 V	Enclosed	88 %	127 mm	5 "	10.28 "	261 mm	2.48 "	63 mm	32 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 265 VAC, 120 ~ 340 VDC Input
