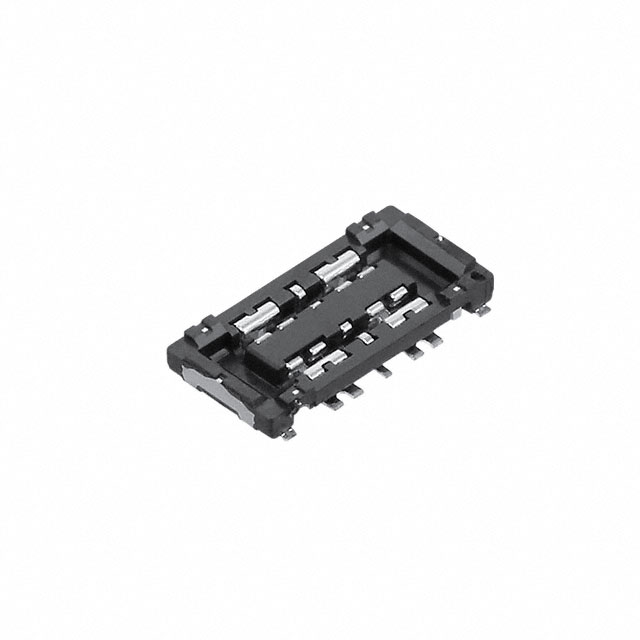

AXF363500A
ActivePanasonic Electric Works
CONN SOCKET 6POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXF363500A
ActivePanasonic Electric Works
CONN SOCKET 6POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXF363500A |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.8 mm |
| Height Above Board [z] | 0.031 in |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Rows | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 1.28 | |
| 10 | $ 1.11 | |||
| 25 | $ 1.06 | |||
| 50 | $ 1.04 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.83 | |||
Description
General part information
AXF363500 Series
6 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
