7251-2PG-300

Active

Conxall/Switchcraft

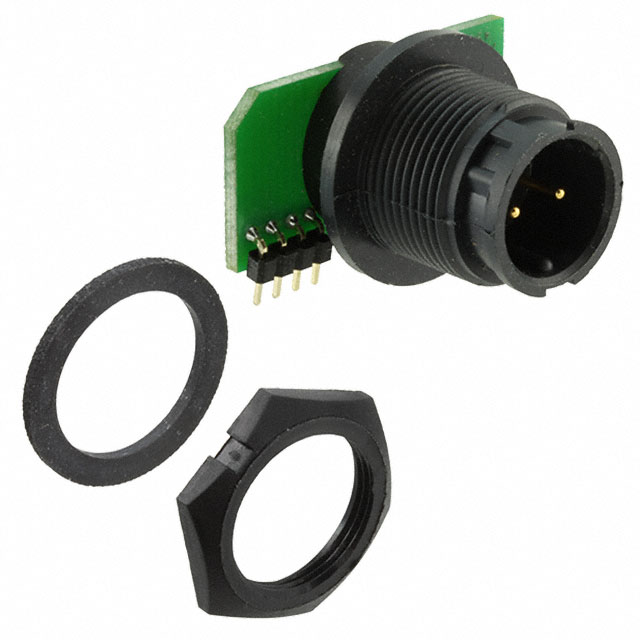

CONN RCPT MALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7251-2PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

CONN RCPT MALE 2POS GOLD SOLDER

Part	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Mounting Type	Contact Material	Shielding	Termination	Applications	Mounting Feature	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Backshell Material, Plating	Number of Positions	Ingress Protection	Insert Material	Color	Primary Material	Material Flammability Rating
Conxall/Switchcraft 7251-2PG-300	Varies by Wire Gauge	Gold	Male Pins, Receptacle	Panel Mount, Right Angle, Through Hole	Copper Alloy	Unshielded	Circuit Board, Solder	Automotive, Communication Systems, Instrumentation	Bulkhead - Front Side Nut	Bayonet Lock	85 °C	-40 °C	Keyed	Nylon, Polyamide (PA)	2	Weathertight	Thermoplastic	Black	Plastic	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
