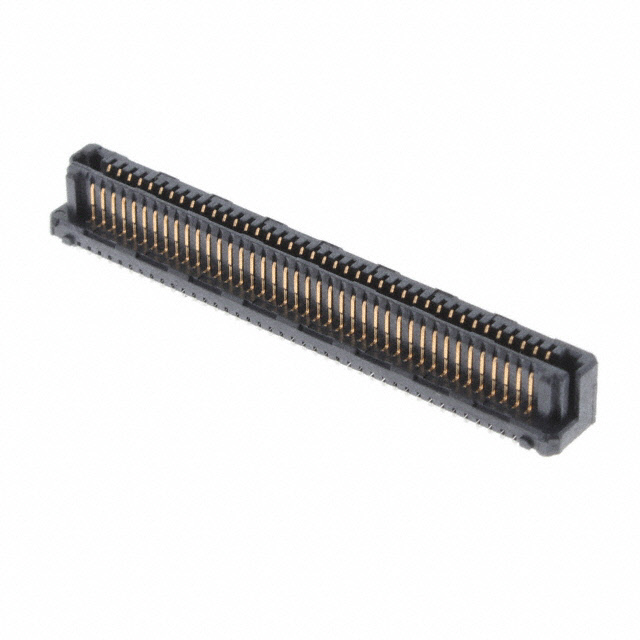

LSEM-140-03.0-L-DV-A-N-K-TR

Active

Samtec Inc.

CONN SELF-MATE 80POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SELF-MATE 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	LSEM-140-03.0-L-DV-A-N-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.175 in
Height Above Board	4.45 mm
Mated Stacking Heights	7 mm, 6 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Connector Type	Contact Finish	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Features	Number of Positions	Mated Stacking Heights	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Height Above Board
Samtec Inc. LSEM-140-06.0-F-DV-A-N-TR	Self Mating Non-Gendered Hermaphroditic	Gold	Flash	7.45 mm	0.293 in	Board Guide	80	9 mm 10 mm 12 mm	Surface Mount	2	0.8 mm	0.031 in
Samtec Inc. LSEM-140-06.0-L-DV-A-N-TR	Self Mating Non-Gendered Hermaphroditic	Gold		7.45 mm	0.293 in	Board Guide	80	9 mm 10 mm 12 mm	Surface Mount	2	0.8 mm	0.031 in	10 Áin	0.25 Ám
Samtec Inc. LSEM-140-03.0-F-DV-A-N-TR	Self Mating Non-Gendered Hermaphroditic	Gold	Flash			Board Guide	80	6 mm 7 mm 9 mm	Surface Mount	2	0.8 mm	0.031 in			0.175 in	4.45 mm
Samtec Inc. LSEM-140-03.0-L-DV-A-N-K-TR	Self Mating Non-Gendered Hermaphroditic	Gold				Board Guide Pick and Place	80	6 mm 7 mm 9 mm	Surface Mount	2	0.8 mm	0.031 in	10 Áin	0.25 Ám	0.175 in	4.45 mm
Samtec Inc. LSEM-140-01-L-DH-A-N-K-TR	Self Mating Non-Gendered Hermaphroditic	Gold				Board Guide Pick and Place	80		Surface Mount Right Angle	2	0.8 mm	0.031 in	10 Áin	0.25 Ám	0.202 in	5.13 mm
Samtec Inc. LSEM-140-04.0-F-DV-A-N-TR	Self Mating Non-Gendered Hermaphroditic	Gold	Flash			Board Guide	80	7 mm 8 mm 10 mm	Surface Mount	2	0.8 mm	0.031 in				0.215 in	5.46 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
