84-653000-10

Active

Aries Electronics

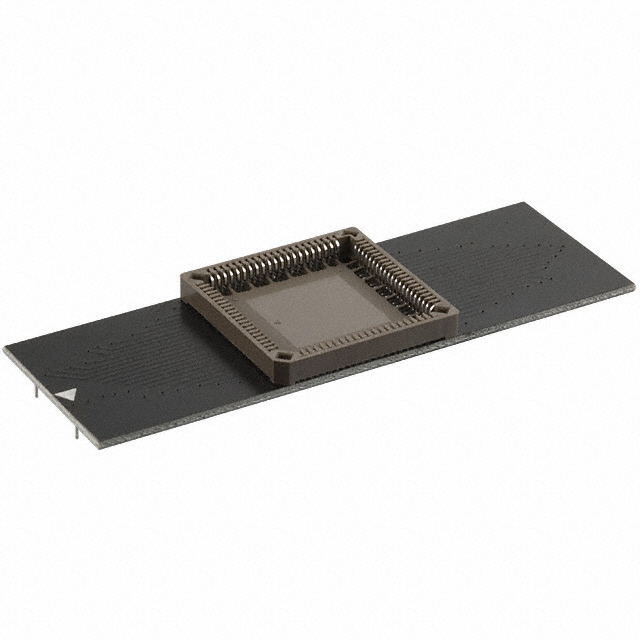

SOCKET ADAPTER PLCC TO 84DIP 0.6

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER PLCC TO 84DIP 0.6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 137.10

General part information

IC Socket Adapter PLCC To DIP, 0.6" (15.24mm) Row Spacing Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	84-653000-10	84-6530 Series

Board Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Contact Finish - Post	Tin-Lead	Gold, Tin-Lead
Contact Finish Thickness - Post	200 µin	10 - 200 çin
Contact Finish Thickness - Post	5.08 µm	0.25 - 5.08 çm
Contact Material - Post [custom]	Brass	Brass
Convert From (Adapter End)	PLCC	PLCC
Convert To (Adapter End)	0.6 in	0.6 in
Convert To (Adapter End)	DIP	DIP
Convert To (Adapter End)	15.24 mm	15.24 mm
Current Rating (Amps)	1 A	1 A
Features	Socket Included	Socket Included
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Pins	84	84
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in

SOCKET ADAPTER PLCC TO 84DIP 0.6

Part	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Features	Board Material	Pitch - Post	Pitch - Post	Convert From (Adapter End)	Current Rating (Amps)	Contact Finish - Post	Number of Pins	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Termination Post Length	Termination Post Length	Contact Material - Post [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Aries Electronics 84-653000-11-RC	Solder	0.05 in	1.27 mm	UL94 V-0	Socket Included	FR4 Epoxy Glass	2.54 mm	0.1 in	PLCC	1 A	Gold	84	Through Hole	0.6 in	DIP	15.24 mm	3.18 mm	0.125 in	Brass	10 çin	0.25 çm
Aries Electronics 84-653000-10	Solder	0.05 in	1.27 mm	UL94 V-0	Socket Included	FR4 Epoxy Glass	2.54 mm	0.1 in	PLCC	1 A	Tin-Lead	84	Through Hole	0.6 in	DIP	15.24 mm	3.18 mm	0.125 in	Brass	200 µin	5.08 µm
