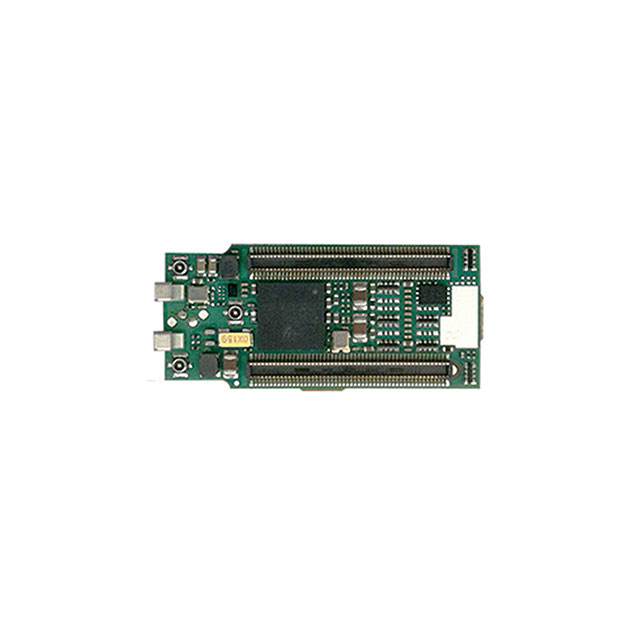

SOMAM3703-32-1780AKIR

Active

Beacon EmbeddedWorks

IC MOD CORTEX-A8 800MHZ 256MB

Search across all available documentation for this part.

Active

Beacon EmbeddedWorks

IC MOD CORTEX-A8 800MHZ 256MB

Technical Specifications

Parameters and characteristics commom to parts in this series

IC MOD CORTEX-A8 800MHZ 256MB

Part	Core Processor	Flash Size	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Module/Board Type	Speed	Connector Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Beacon EmbeddedWorks SOMAM3703-20-1780AGCR	ARM® Cortex®-A8, AM3703	512 MB	256 MB	70 °C	0 °C	MPU Core	800 MHz	Board-to-Board (BTB) Socket - 200	1.06 in	0.59 in	27 mm	15 mm
Beacon EmbeddedWorks SOMAM3703-32-1780AKIR	ARM® Cortex®-A8, AM3703	512 MB	256 MB	85 °C	-40 °C	MPU Core	800 MHz	Board-to-Board (BTB) Socket - 200	1.34 in	0.59 in	34 mm	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AM37x Embedded Module ARM® Cortex®-A8, AM3703 800MHz 256MB 512MB
