MPG206N

Active

TE Connectivity Raychem Cable Protection

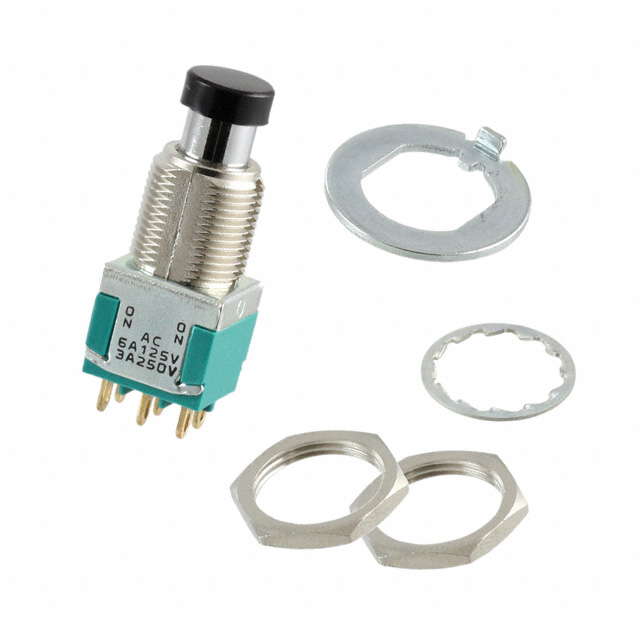

SWITCH PUSHBUTTON DPDT 6A 125V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MPG206N

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	11.8 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Color - Actuator/Cap	Voltage Rating - AC	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Actuator Marking	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Type	Circuit	Current Rating (Amps)	Type	Mounting Type
TE Connectivity Raychem Cable Protection MPG206RPC	Black	125 V	50000 Cycles	-20 C	80 C	28 V	PC Pin	No Marking	11.8 mm	On-Mom	Button Round	DPDT	4 A 6 A	Standard	Panel Mount Rear
TE Connectivity Raychem Cable Protection MPG206N	Black	125 V	50000 Cycles	-20 C	80 C	28 V	Solder Lug	No Marking	11.8 mm	On-On	Button Round	DPDT	4 A 6 A	Standard	Panel Mount Rear
TE Connectivity Raychem Cable Protection MPG206NPC	Black	125 V	50000 Cycles	-20 C	80 C	28 V	PC Pin	No Marking	11.8 mm	On-On	Button Round	DPDT	4 A 6 A	Standard	Panel Mount Rear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Rear
