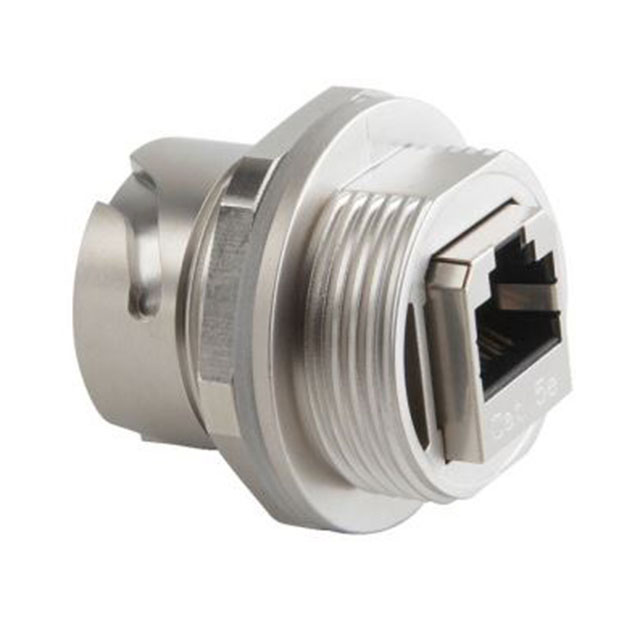

17-10012

Active

Amphenol CONEC

CONN MOD COUPLER 8P8C TO 8P8C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sealed Industrial Ethernet Circular IP67 RJ45

17-10012

Active

Amphenol CONEC

CONN MOD COUPLER 8P8C TO 8P8C

Deep-Dive with AI

DocumentsDatasheet Sealed Industrial Ethernet Circular IP67 RJ45

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-10012

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Features	Circular Bayonet Coupling
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Front Side Nut, Rear Side Nut
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shell Material, Finish	Nickel Plated, Metallized, Plastic
Shielding	Shielded
Type	Coupler

17-1001 Series

Part	LED Color	Number of Positions/Contacts	Shielding	Contact Finish	Termination	Number of Ports	Ratings	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material	Tab Direction	Mounting Type	Number of Rows	Orientation	Accessory Type	Color	For Use With/Related Products	Shell Material, Finish	Convert From (Adapter End)	Type	Mounting Feature	Convert To (Adapter End)
Amphenol CONEC 17-10018	Does Not Contain LED	8p8c (RJ45 Ethernet)	Shielded	Gold	PC Board Solder	1	Cat5e	50 µin	1.27 µm	Jack	Circular Bayonet Coupling	Phosphor Bronze	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	User Selectable	Bulkhead Panel Mount	1	Straight
Amphenol CONEC 17-10014											IP67 Lanyard										Cap (Cover)	Silver	RJ45 Connectors
Amphenol CONEC 17-10017	Does Not Contain LED	8p8c (RJ45 Ethernet)	Shielded	Gold	PC Board Solder	1	Cat5e	50 µin	1.27 µm	Jack	Circular Bayonet Coupling	Phosphor Bronze	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	User Selectable	Bulkhead Panel Mount	1	Straight
Amphenol CONEC 17-10019			Unshielded	Gold			Cat5e	50 µin	1.27 µm		Circular Threaded Coupling	Phosphor Bronze	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled		Bulkhead Panel Mount						Polyester	Jack 8p8c (RJ45)	Coupler	Front Side Nut Rear Side Nut	8p8c (RJ45) Jack
Amphenol CONEC 17-10012			Shielded	Gold			Cat5e	50 µin	1.27 µm		Circular Bayonet Coupling	Phosphor Bronze	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled		Bulkhead Panel Mount						Metallized Nickel Plated Plastic	Jack 8p8c (RJ45)	Coupler	Front Side Nut Rear Side Nut	8p8c (RJ45) Jack
Amphenol CONEC 17-10016	Does Not Contain LED	8p8c (RJ45 Ethernet)	Shielded	Gold	Color Coded Block IDC	1	Cat5e	50 µin	1.27 µm	Jack	Circular Bayonet Coupling	Phosphor Bronze	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	User Selectable	Bulkhead Panel Mount	1	Straight
Amphenol CONEC 17-10011			Shielded	Gold			Cat5e	50 µin	1.27 µm		Cap (Cover) Circular Bayonet Coupling Industrial Environments	Phosphor Bronze	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled		Bulkhead Panel Mount						Metallized Nickel Plated Plastic	Jack 8p8c (RJ45)	Coupler	Front Side Nut Rear Side Nut	8p8c (RJ45) Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

17-1001 Series

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Shielded

Documents

Technical documentation and resources

Datasheet

Sealed Industrial Ethernet Circular IP67 RJ45

Datasheet
