C3CEG-3436G

Active

CW Industries

IDC CABLE - CKC34G/AE34G/CCE34G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKC34G/AE34G/CCE34G

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Positions	Shielding	Cable Termination	Number of Rows	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Cable	Pitch - Cable	Color	Length	Length	Length
CW Industries C3CEG-3418G	Socket to Card Edge	0.1 in	2.54 mm	Gold	34	Unshielded	IDC	2	457.2 mm	1.5 ft	10 Áin	0.25 Ám	Polarizing Key	0.05 "	1.27 mm
CW Industries C3CEG-3436G	Socket to Card Edge	0.1 in	2.54 mm	Gold	34	Unshielded	IDC	2	914.4 mm	3 ft	10 Áin	0.25 Ám	Polarizing Key	0.05 "	1.27 mm
CW Industries C3CEG-3418M	Socket to Card Edge	0.1 in	2.54 mm	Gold	34	Unshielded	IDC	2	457.2 mm	1.5 ft	10 Áin	0.25 Ám	Polarizing Key	0.05 "	1.27 mm	Multiple Ribbon
CW Industries C3CEG-3406G	Socket to Card Edge	0.1 in	2.54 mm	Gold	34	Unshielded	IDC	2			10 Áin	0.25 Ám	Polarizing Key	0.05 "	1.27 mm		152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

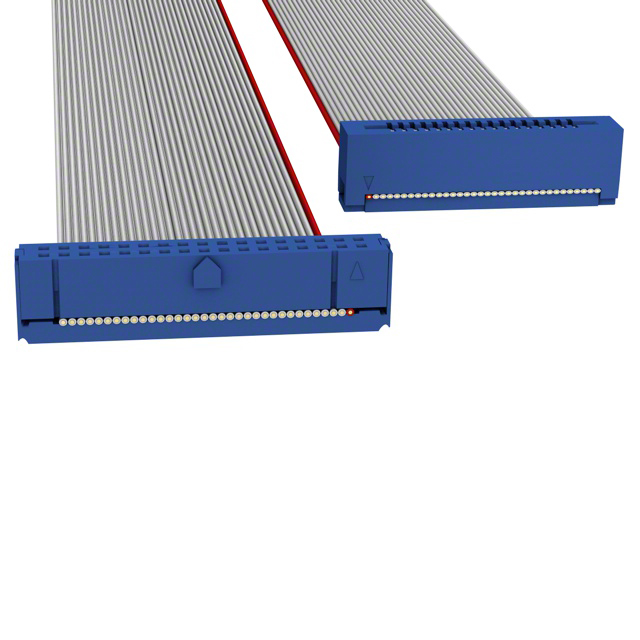

34 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)
