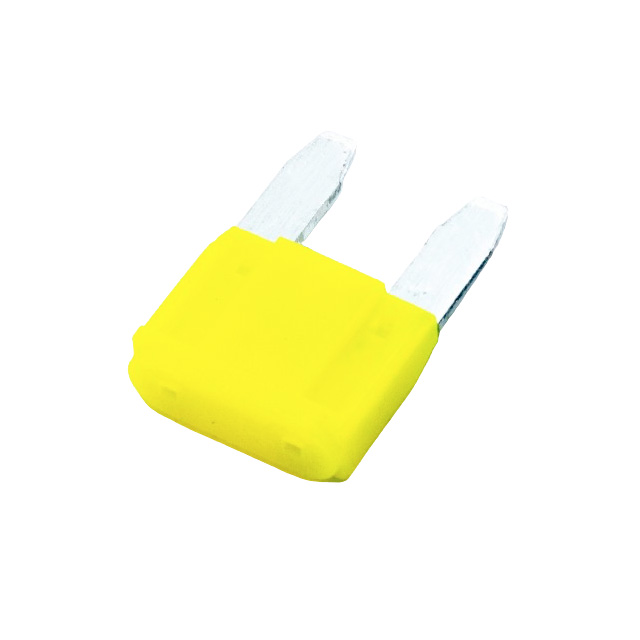

ANM-20A

Active

OptiFuse

FUSE AUTO 20A 32VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 20A 32VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	ANM-20A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Yellow
Current Rating (Amps)	20 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Size / Dimension [x]	0.429 "
Size / Dimension [x]	10.9 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	9.2 mm
Size / Dimension [z]	0.362 in
Voltage Rating - DC	32 V

FUSE AUTO 20A 32VDC BLADE MINI

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Approval Agency	Package / Case	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Voltage Rating - DC	Fuse Type	Mounting Type	Response Time
OptiFuse ANM-20A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	Yellow	ISO, SAE	Blade, Miniature	1 kA	20 A	32 V	Automotive	Requires Holder	Fast Blow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
