969022-1
ActiveTE Connectivity AMP Connectors
MICRO TIMER 3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
969022-1
ActiveTE Connectivity AMP Connectors
MICRO TIMER 3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 969022-1 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 31.5 µin |
| Contact Finish Thickness | 0.8 µm |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.21 | |||
| Tape & Reel (TR) | 6000 | $ 0.19 | ||
969022 Series
MICRO TIMER 3
| Part | Pin or Socket | Contact Finish | Type | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 969022-1 | Socket | Gold | Stamped | Crimp | 17 AWG | 20 AWG | 31.5 µin | 0.8 µm |
Description
General part information
969022 Series

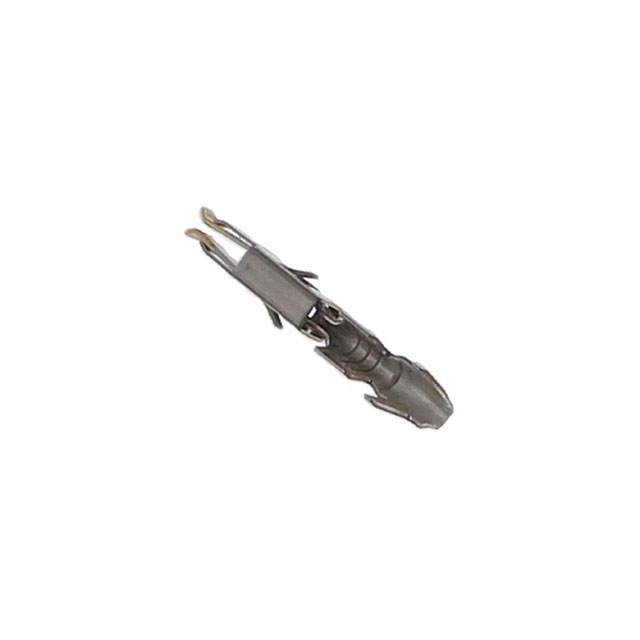

Socket Contact Gold 17-20 AWG Crimp Stamped
