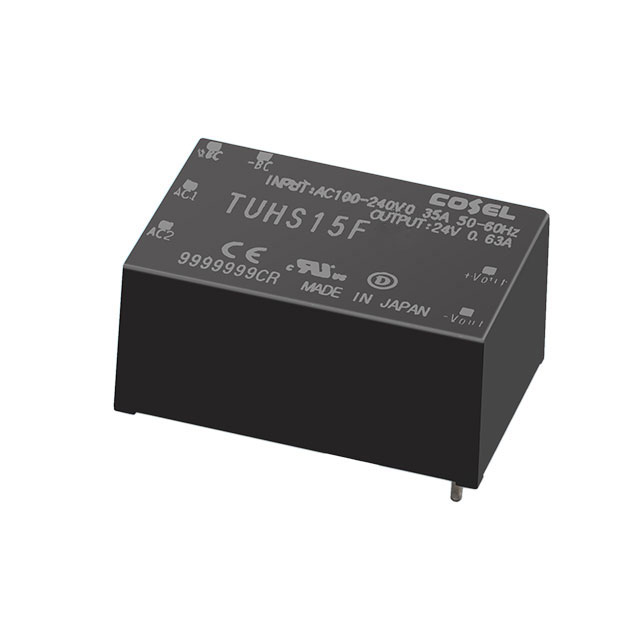

TUHS15F24
ActiveCosel USA, Inc.
AC/DC CONVERTER 24V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TUHS15F24
ActiveCosel USA, Inc.
AC/DC CONVERTER 24V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TUHS15F24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 630 mA |
| Efficiency | 87 % |
| Features | Universal Input |
| Line Regulation | 96 mV |
| Load Regulation | 150 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 0.86 " |
| Size / Dimension [y] | 21.8 mm |
| Size / Dimension [z] | 0.59 in |
| Size / Dimension [z] | 15 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.76 | |
| 5 | $ 25.00 | |||
| 10 | $ 24.24 | |||
| 25 | $ 23.48 | |||
| 50 | $ 22.73 | |||
| 100 | $ 21.97 | |||
| 250 | $ 21.21 | |||
Description
General part information
TUHS15 Series
Enclosed AC DC Converters 1 Output 24V 630mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
