1212A 010500

Active

Belden Inc.

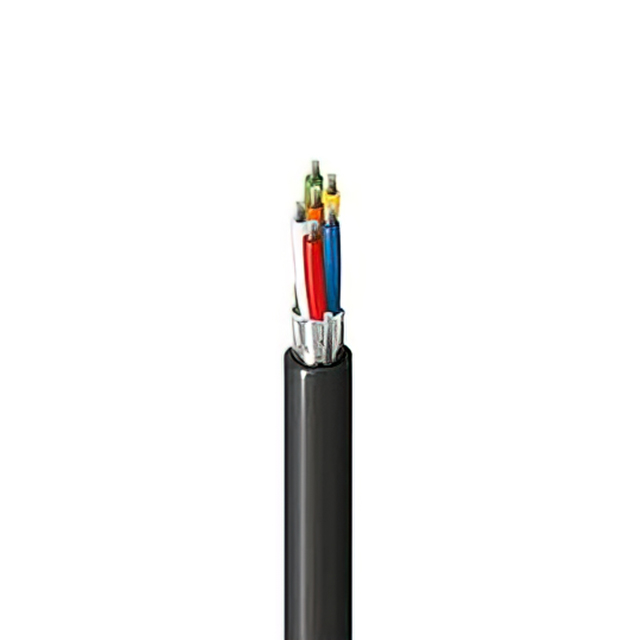

CABLE 6COND 26AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 26AWG BLK SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1212A 010500	1212A Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG	7 - 34 Strands
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.22 in	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm	0.94 mm
Jacket (Insulation) Thickness	0.037 in	0.037 in
Jacket Color	Black	Black
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	6	6
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Ratings	UL Style 2464	UL Style 2464
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Instrumentation	Instrumentation
Voltage	300 V	300 V
Wire Gauge	26 AWG	26 AWG

CABLE 6COND 26AWG BLK SHLD

Part	Shield Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Cable Type	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Features	Conductor Insulation	Usage	Conductor Strand	Conductor Material	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Shield Type	Jacket Color	Shield Coverage	Length [x]	Length [x]
Belden Inc. 1212A 0101000	Aluminum	6	0.22 in	5.59 mm	UL Style 2464	Multi-Conductor	300 V	-20 C	80 C	Drain Wire	Poly-Vinyl Chloride (PVC)	Instrumentation	7 Strands, 34 AWG	Copper, Tinned	Poly-Vinyl Chloride (PVC)	26 AWG	0.94 mm	0.037 in	1000 ft	304.8 m	Foil	Black	100 %
Belden Inc. 1212A 010500	Aluminum	6	0.22 in	5.59 mm	UL Style 2464	Multi-Conductor	300 V	-20 C	80 C	Drain Wire	Poly-Vinyl Chloride (PVC)	Instrumentation	7 Strands, 34 AWG	Copper, Tinned	Poly-Vinyl Chloride (PVC)	26 AWG	0.94 mm	0.037 in			Foil	Black	100 %	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 5.31

General part information

6 Conductor Multi-Conductor Cable Black 26 AWG Foil 500.0' (152.4m)
