SSL-LX3059SISUGW

Active

Lumex Opto/Components Inc.

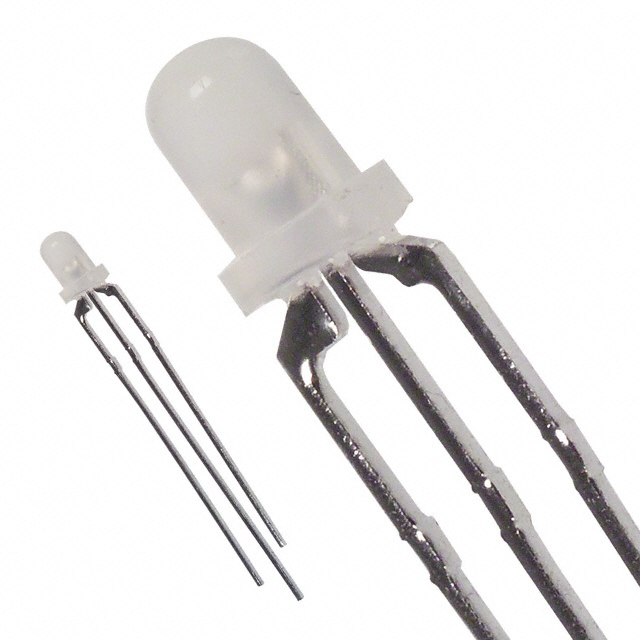

LED GREEN/RED DIFFUSED T-1 T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSL-LX3059SISUGW

Active

Lumex Opto/Components Inc.

LED GREEN/RED DIFFUSED T-1 T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX3059SISUGW	SSL-LX3059 Series

Color	Red, Green	Red, Green, Yellow
Configuration	Common Cathode	Common Anode, Common Cathode
Current - Test	20 mA, 20 mA	20 mA
Current - Test	-	20mA Red, 20mA Yellow
Height (Max) [Max]	7.03 mm	5 - 7.03 mm
Lens Color	White	White
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Size	-	3 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	240 mcd, 90 mcd	30 - 250 mcd
Millicandela Rating	-	6mcd Green, 6mcd Yellow
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial - 3 Leads, Radial
Supplier Device Package	T-1 (3mm)	T-3mm TRI-LEADED, T-1 (3mm)
Viewing Angle	60 °	60 °
Voltage - Forward (Vf) (Typ)	2.2 V, 2 V	2 - 2.2 V
Wavelength - Peak	-	565 - 635 nm
Wavelength - Peak	-	585 - 635 nm
Wavelength - Peak [custom]	636 nm	636 nm
Wavelength - Peak [custom]	574 nm	574 nm

SSL-LX3059 Series

LED GREEN/RED DIFF T-3MM TRI T/H

Part	Lens Style	Lens Size	Lens Size	Configuration	Wavelength - Peak	Viewing Angle	Height (Max) [Max]	Lens Transparency	Color	Lens Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Test	Supplier Device Package	Millicandela Rating	Package / Case	Wavelength - Peak [custom]	Current - Test	Millicandela Rating	Lens Size [diameter]	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Lumex Opto/Components Inc. SSL-LX3059IGW-CA	Round with Domed Top	3 mm	T-1	Common Anode	565 nm, 635 nm	60 °	7.03 mm	Diffused	Green, Red	White	2 V, 2.2 V	Through Hole	20 mA, 20 mA	T-3mm TRI-LEADED	30 mcd	Radial - 3 Leads
Lumex Opto/Components Inc. SSL-LX3059IYW	Round with Domed Top	3 mm	T-1	Common Cathode		60 °	7.03 mm	Diffused	Red, Yellow	White	2 V, 2.1 V	Through Hole		T-3mm TRI-LEADED	30 mcd, 30 mcd	Radial - 3 Leads	585 nm, 635 nm	20mA Red, 20mA Yellow
Lumex Opto/Components Inc. SSL-LX3059IGW-TR	Round with Domed Top	3 mm	T-1	Common Cathode	565 nm, 627 nm	60 °	5 mm	Diffused	Green, Red	White	2 V, 2.2 V	Through Hole	20 mA, 20 mA	T-3mm TRI-LEADED	40 mcd, 40 mcd	Radial - 3 Leads
Lumex Opto/Components Inc. SSL-LX3059GYW	Round with Domed Top	3 mm	T-1	Common Cathode	565 nm, 585 nm	60 °	7.03 mm	Diffused	Green, Yellow	White	2 V, 2.2 V	Through Hole	20 mA, 20 mA	T-3mm TRI-LEADED		Radial - 3 Leads			6mcd Green, 6mcd Yellow
Lumex Opto/Components Inc. SSL-LX3059SYSUGW	Round with Domed Top				574 nm, 590 nm	60 °	7.03 mm		Green, Yellow	White	2 V, 2.2 V	Through Hole	20 mA, 20 mA	T-3mm TRI-LEADED	80 mcd, 250 mcd	Radial - 3 Leads				3 mm
Lumex Opto/Components Inc. SSL-LX3059IGW	Round with Domed Top	3 mm	T-1	Common Cathode	565 nm, 635 nm	60 °	7.03 mm	Diffused	Green, Red	White	2 V, 2.2 V	Through Hole	20 mA, 20 mA	T-3mm TRI-LEADED	30 mcd	Radial - 3 Leads
Lumex Opto/Components Inc. SSL-LX3059SISUGW	Round with Domed Top	3 mm	T-1	Common Cathode		60 °	7.03 mm	Diffused	Green, Red	White	2 V, 2.2 V	Through Hole	20 mA, 20 mA	T-1 (3mm)	90 mcd, 240 mcd	Radial					636 nm	574 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.23
		10	$ 0.82
		100	$ 0.63
		500	$ 0.63

Description

General part information

SSL-LX3059 Series

Green, Red LED Indication - Discrete 2.2V Green, 2V Red Radial

Documents

Technical documentation and resources
