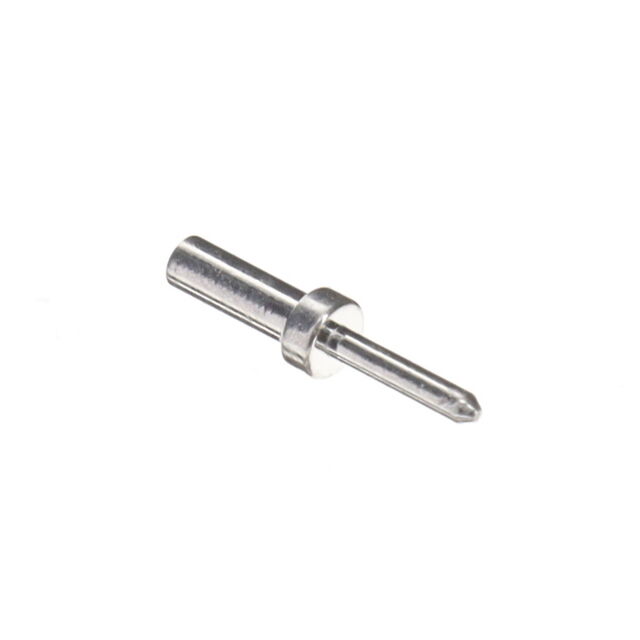

3112-3-00-01-00-00-08-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .024DIA TINLEAD

Deep-Dive with AI

Search across all available documentation for this part.

3112-3-00-01-00-00-08-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .024DIA TINLEAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3112-3-00-01-00-00-08-0

Board Thickness	0.094 in
Board Thickness	2.39 mm
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Brass Alloy
Flange Diameter [diameter]	0.062 in
Flange Diameter [diameter]	1.57 mm
Insulation	Non-Insulated
Length - Above Flange [x]	3.18 mm
Length - Above Flange [x]	0.125 in
Length - Below Flange [x]	2.87 mm
Length - Below Flange [x]	0.113 in
Length - Overall [x]	6.67 mm
Length - Overall [x]	0.263 in
Mounting Hole Diameter [diameter]	1.09 mm
Mounting Hole Diameter [diameter]	0.043 in
Mounting Type	Through Hole
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

3112-3 Series

Part	Contact Finish	Insulation	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Board Thickness	Board Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Terminal Type	Terminal Style	Length - Above Flange [x]	Length - Above Flange [x]	Contact Material
Mill-Max Manufacturing Corp. 3112-3-00-15-00-00-08-0	Gold	Non-Insulated	Swage	1.09 mm	0.043 in	6.67 mm	0.263 in	Through Hole	10 Áin	0.25 Ám	0.094 in	2.39 mm	0.062 in	1.57 mm	2.87 mm	0.113 in	PC Pin	Single End	3.18 mm	0.125 in	Brass Alloy
Mill-Max Manufacturing Corp. 3112-3-00-80-00-00-08-0	Tin	Non-Insulated	Swage	1.09 mm	0.043 in	6.67 mm	0.263 in	Through Hole	200 Áin	5.08 Ám	0.094 in	2.39 mm	0.062 in	1.57 mm	2.87 mm	0.113 in	PC Pin	Single End	3.18 mm	0.125 in	Brass Alloy
Mill-Max Manufacturing Corp. 3112-3-00-21-00-00-08-0	Gold	Non-Insulated	Swage	1.09 mm	0.043 in	6.67 mm	0.263 in	Through Hole	20 µin	0.51 µm	0.094 in	2.39 mm	0.062 in	1.57 mm	2.87 mm	0.113 in	PC Pin	Single End	3.18 mm	0.125 in	Brass Alloy
Mill-Max Manufacturing Corp. 3112-3-00-01-00-00-08-0	Tin-Lead	Non-Insulated	Swage	1.09 mm	0.043 in	6.67 mm	0.263 in	Through Hole	200 Áin	5.08 Ám	0.094 in	2.39 mm	0.062 in	1.57 mm	2.87 mm	0.113 in	PC Pin	Single End	3.18 mm	0.125 in	Brass Alloy
Mill-Max Manufacturing Corp. 3112-3-00-34-00-00-08-0	Gold	Non-Insulated	Swage	1.09 mm	0.043 in	6.67 mm	0.263 in	Through Hole	50 µin	1.27 µm	0.094 in	2.39 mm	0.062 in	1.57 mm	2.87 mm	0.113 in	PC Pin	Single End	3.18 mm	0.125 in	Brass Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.73
		10	$ 0.62
		100	$ 0.56
		1000	$ 0.40
		5000	$ 0.35
		10000	$ 0.34

Description

General part information

3112-3 Series

PC Pin Terminal Connector Through Hole Tin-Lead 0.024" (0.61mm) Dia
