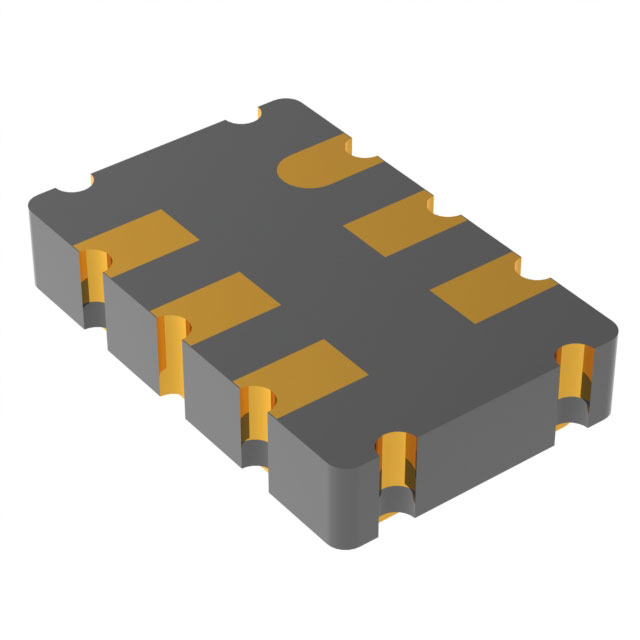

NX76R0001Q
ActiveDiodes Inc
XTAL OSC XO 270.0000MHZ CML
Deep-Dive with AI
Search across all available documentation for this part.
NX76R0001Q
ActiveDiodes Inc
XTAL OSC XO 270.0000MHZ CML
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NX76R0001Q |
|---|---|
| Base Resonator | Crystal |
| Frequency | 270 MHz |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CML |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 5.38 | |
Description
General part information
NX76R0001 Series
270 MHz XO (Standard) CML Oscillator 3.3V
Documents
Technical documentation and resources
No documents available
