PNS3/8 SL080

Active

ALPHA WIRE

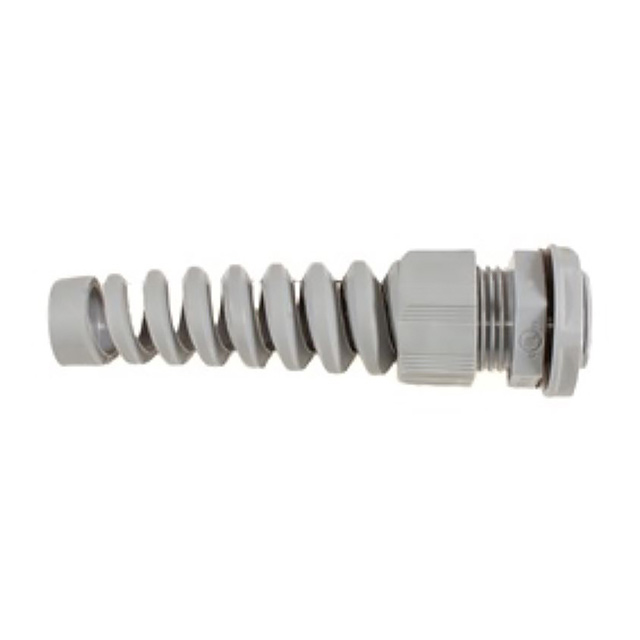

CABLE GLAND 5-10MM 3/8" NPT

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE GLAND 5-10MM 3/8" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	PNS3/8 SL080

Color	Gray
Includes	Gasket, Nut, Strain Relief
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	0.673 in
Panel Hole Size	17.1 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	3/8" NPT
Type	Cable Gland

CABLE GLAND 5-10MM 3/8" NPT

Part	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Material	Color	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type
ALPHA WIRE PNS3/8 SL080	3/8" NPT	0.394 "	10 mm	Gasket, Nut, Strain Relief	Polyamide (PA), Nylon	Gray	0.591 in	15 mm	0.673 in	17.1 mm	IP66/IP68	5 mm	0.197 in	100 °C	-20 C	Cable Gland
