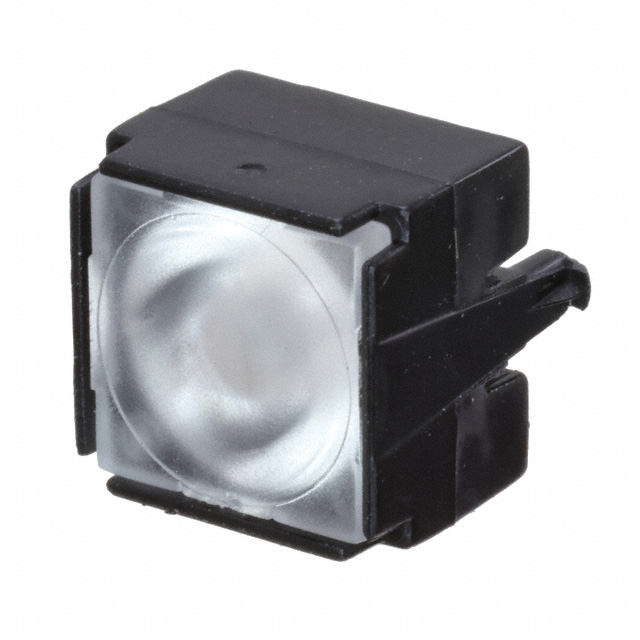

CP12947_LARISA-WW-CLIP16
ActiveLEDiL
BULK /ASSEMBLY/SQUARE/1 POS/10X10MM (D)/7,5MM( ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP12947_LARISA-WW-CLIP16 |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Osram, Lumileds, Cree, Nichia |
| Lens Size [x] | 10 mm |
| Lens Size [y] | 10 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Diffused |
| Material | Acrylic |
| Mounting Type | Adhesive, Snap In |
| Number of LEDs | 1 |
| Optical Pattern | Wide |
| Type | Lens With Holder |
| Viewing Angle [Max] | 70 ° |
| Viewing Angle [Min] | 52 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CP12947 Series
Lens With Holder Clear 52° ~ 70° Wide Adhesive, Snap In
