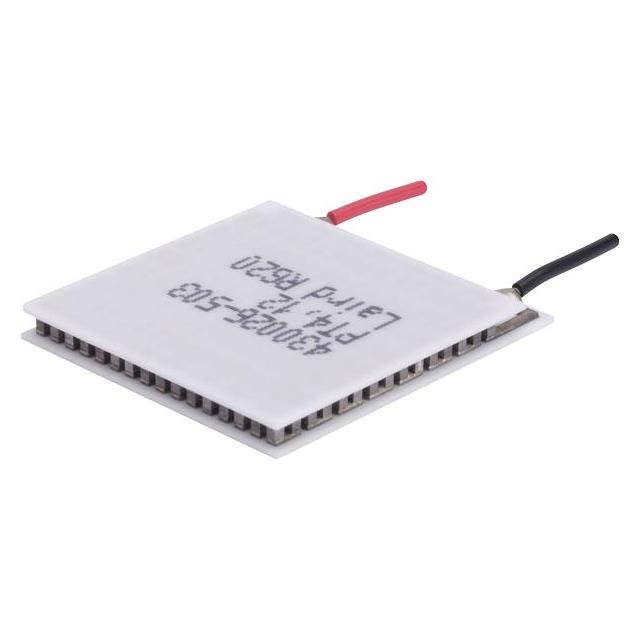

430026-503

Active

Laird Thermal Systems, Inc.

PELTIER MOD 34X30X3.2MM 4A

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD 34X30X3.2MM 4A

Technical Specifications

Parameters and characteristics for this part

Part	Height [z]	Current - Max [Max]	Delta Tmax @ Th	Operating Temperature	Number of Stages	Size / Dimension [y]	Size / Dimension [x]	Resistance	Voltage - Max [Max]	Features	Qmax @ Th
Laird Thermal Systems, Inc. 430026-503	3.2 mm	4 A	25 °C 65 °C	80 °C	1	30 mm	34 mm	3.36 Ohms	14.5 V	Lead Wires Non-Sealed	34.3 W
Laird Thermal Systems, Inc. 430026-507	3.2 mm	4 A	25 °C 65 °C	80 °C	1	30 mm	34 mm	3.36 Ohms	14.5 V	Lead Wires Sealed - Silicone RTV	34.3 W
Laird Thermal Systems, Inc. 430026-508	3.2 mm	4 A	25 °C 65 °C	80 °C	1	30 mm	34 mm	3.36 Ohms	14.5 V	Lead Wires Sealed - Epoxy	34.3 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 21.52

General part information

Peltier Module 34.3W @ 25°C 4 A 80°C
