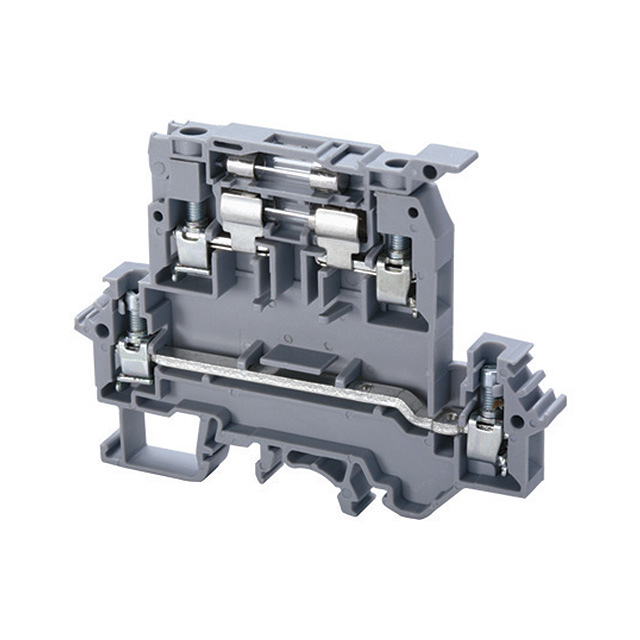

Specification	DDFL4U

Color	Gray
Disconnect Type	Fuse, Lever
Fuse Type	5mm x 20mm, 5mm x 25mm
Material - Insulation	Polyamide, PA66, Nylon 6/6
Number of Levels	2
Number of Positions	4
Stripping Length	9.5 mm
Terminal Width	8 mm
Termination Style	Screw
Type	Disconnect, Feed Through
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG (Max)	22 AWG
Wire Gauge or Range - AWG (Min)	10 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²

DDFL4 Series

Part	Voltage - IEC	Voltage - UL	Current - UL	Number of Positions	Termination Style	Terminal Width	Fuse Type	Number of Levels	Number of Levels (Connection)	Current - IEC	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Disconnect Type	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Color	Type	Features	Material - Insulation	Stripping Length
Altech Corporation DDFL4ULR	800 V	600 V	6.3 A	4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2	Connected	6.3 A	22 AWG	10 AWG	Fuse Lever	4 mm²	0.2 mm²	Gray	Disconnect
Altech Corporation DDFL4U(E)LR/110	800 V	600 V	6.3 A	4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2	Connected	6.3 A	22 AWG	10 AWG	Fuse Lever	4 mm²	0.2 mm²	Gray	Disconnect	Diode LED
Altech Corporation DDFL4U(E)/24/BU
Altech Corporation DDFL4U(E)LR/48	800 V	600 V	6.3 A	4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2	Connected	6.3 A	22 AWG	10 AWG	Fuse Lever	4 mm²	0.2 mm²	Gray	Disconnect	Diode LED
Altech Corporation DDFL4U(E)/24	800 V	600 V		4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2			22 AWG	10 AWG	Fuse Lever	4 mm²	0.2 mm²	Gray	Disconnect Feed Through	LED Indicator	Nylon 6/6 PA66 Polyamide	9.5 mm
Altech Corporation DDFL4U	800 V	600 V		4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2			22 AWG	10 AWG	Fuse Lever	4 mm²	0.2 mm²	Gray	Disconnect Feed Through		Nylon 6/6 PA66 Polyamide	9.5 mm
Altech Corporation DDFL4U(E)LR/24	800 V	600 V	6.3 A	4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2	Connected	6.3 A	22 AWG	10 AWG	Fuse Lever	4 mm²	0.2 mm²	Gray	Disconnect	Diode LED
Altech Corporation DDFL4U(E)/110	800 V	600 V	6.3 A	4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2		6.3 A	22 AWG	10 AWG	Fuse Lever	4 mm²	0.2 mm²	Gray	Disconnect Feed Through	Diode LED
Altech Corporation DDFL4U(E)/220	800 V	600 V		4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2			22 AWG	10 AWG	Fuse	4 mm²	0.2 mm²	Gray	Disconnect Feed Through	LED	Nylon 6/6 PA66 Polyamide	9.5 mm
Altech Corporation DDFL4U(E)/48	800 V	600 V	6.3 A	4	Screw	8 mm	5mm x 20mm 5mm x 25mm	2		6.3 A	22 AWG	10 AWG	Fuse Lever	4 mm²	0.2 mm²	Gray	Disconnect Feed Through	Diode LED
