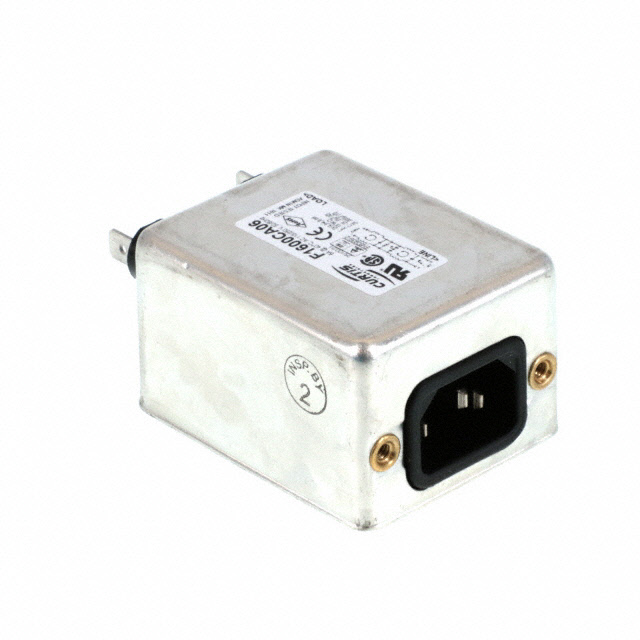

F1600CA06

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	F1600CA06	F1600C Series

Accomodates a Fuse	False	False
Approval Agency	CSA, CE, UL, TUV	CSA, CE, UL, TUV
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A	6 A
Current Rating - Filter	6 A	6 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Screw Hole	Panel Mount, Screw Hole, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.5 mm	30.5 mm
Panel Cutout Dimensions [y]	22.9 mm	22.9 mm
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect, Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Mounting Type	Termination	Termination	Termination	Connector Type	Current Rating - Filter	Accomodates a Fuse	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Approval Agency	Voltage Rating - Appliance Inlet	Filter Type
Curtis Industries F1600CA06	Panel Mount, Screw Hole	0.25 in	6.3 mm	Quick Connect	Male Blades, Receptacle	6 A		IEC 320-C14	22.9 mm	30.5 mm	6 A	CE, CSA, TUV, UL	250 VAC	Filtered (EMI, RFI) - Commercial
Curtis Industries F1600CP06	Panel Mount, Screw Hole, Through Hole, Right Angle			Solder	Male Blades, Receptacle	6 A		IEC 320-C14	22.9 mm	30.5 mm	6 A	CE, CSA, TUV, UL	250 VAC	Filtered (EMI, RFI) - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Screw Hole
