Cable Assemblies

A1AXH-6436G

Active

TE Connectivity Raychem Cable Protection

IDC CABLE - ASC64H/AE64G/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide

Cable Assemblies

A1AXH-6436G

Active

TE Connectivity Raychem Cable Protection

IDC CABLE - ASC64H/AE64G/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A1AXH-6436G

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	64
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

A1AXH Series

Part	Number of Positions	Contact Finish	Cable Termination	Number of Rows	Connector Type	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Color
TE Connectivity Raychem Cable Protection A1AXH-3436G	34	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded
TE Connectivity Raychem Cable Protection A1AXH-1636G		Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded	16
TE Connectivity Raychem Cable Protection A1AXH-1436G	14	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded
TE Connectivity Raychem Cable Protection A1AXH-2636G	26	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded
TE Connectivity Raychem Cable Protection A1AXH-5036G	50	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded
TE Connectivity Raychem Cable Protection A1AXH-3036G	30	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded
TE Connectivity Raychem Cable Protection A1AXH-6436M	64	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded		Multiple Ribbon
TE Connectivity Raychem Cable Protection A1AXH-1036M	10	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded		Multiple Ribbon
TE Connectivity Raychem Cable Protection A1AXH-2036M	20	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded		Multiple Ribbon
TE Connectivity Raychem Cable Protection A1AXH-6436G	64	Gold	IDC	2	Socket to Cable	0.05 "	1.27 mm	15 µin	0.38 µm	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.23
		10	$ 12.62
		25	$ 11.71
		50	$ 11.07
		100	$ 10.47
		250	$ 9.72
		500	$ 9.19
		1000	$ 8.81

Description

General part information

A1AXH Series

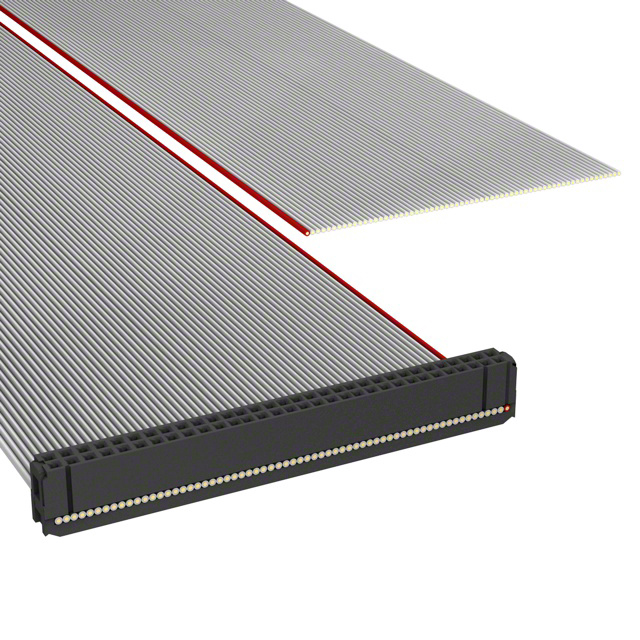

64 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet
