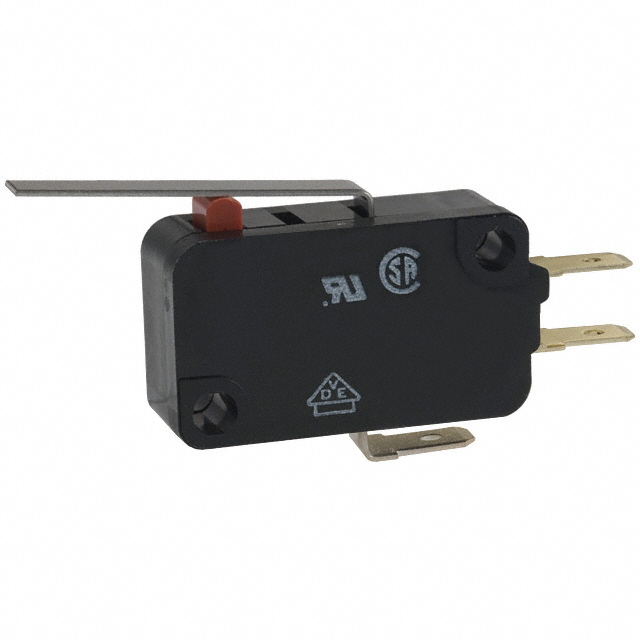

VX-52-1C23 - VX-xx-1C23

VX-52-1C23

Active
Omron Electronics Inc-EMC Div

MICROSWITCH, MINIATURE, HINGE LEVER, SPDT, QUICK CONNECT, 5 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date CodesDatasheet+2
VX-52-1C23 - VX-xx-1C23

VX-52-1C23

Active
Omron Electronics Inc-EMC Div

MICROSWITCH, MINIATURE, HINGE LEVER, SPDT, QUICK CONNECT, 5 A

Deep-Dive with AI

DocumentsHow to Read Date CodesDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationVX-52-1C23
Actuator TypeLever, Straight
CircuitSPDT
Current Rating (Amps)5 A
Differential Travel0.8 mm
Differential Travel0.031 "
Electrical Life500000 Cycles
Ingress ProtectionIP40
Mechanical Life50000000 Cycles
Mounting TypeChassis Mount
Operating Force30 gf
Operating Position0.6 in
Operating Position15.2 mm
Operating Temperature [Max]80 C
Operating Temperature [Min]-25 °C
Overtravel1.6 mm
Overtravel0.062 in
Pretravel4 mm
Pretravel0.157 in
Switch FunctionOn-Mom
Termination StyleQuick Connect - 0.187" (4.7mm)
Voltage Rating - AC125 V
Voltage Rating - DC30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 5.12
10$ 4.52
25$ 4.22
40$ 4.02
100$ 3.42
300$ 3.11
500$ 2.91
1000$ 2.81
SagerN/A 1$ 3.32
50$ 3.21
126$ 3.01
251$ 2.93
503$ 2.84
1006$ 2.76

Description

General part information

VX-52 Series

Basic / Snap Action Switches Miniature Basic Switch
