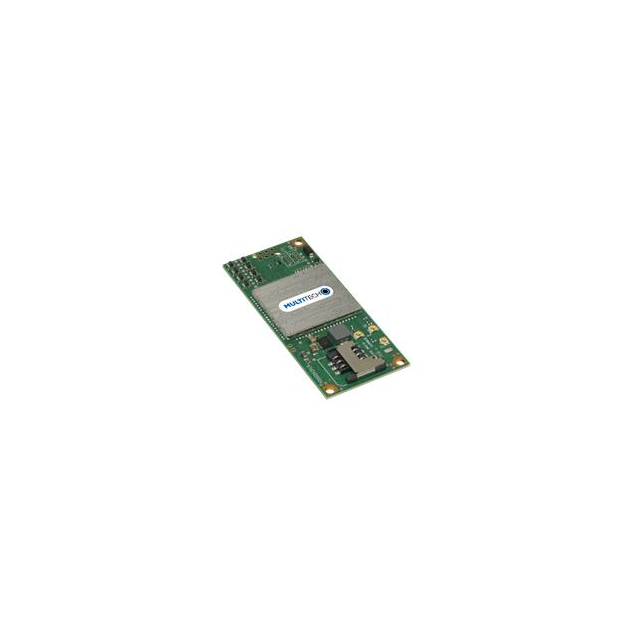

MTSMC-L4G1-U

Obsolete

Multi-Tech Systems Inc.

RF TXRX MOD CELL U.FL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MTSMC-L4G1-U

Obsolete

Multi-Tech Systems Inc.

RF TXRX MOD CELL U.FL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTSMC-L4G1-U

Antenna Type	Antenna Not Included, U.FL
Current - Receiving	46 mA
Current - Transmitting	46 mA
Data Rate	150 Mbps
Frequency	2.3 GHz, 1.7 GHz, 2.5 GHz, 900 MHz, 800 MHz, 850 MHz, 1900 MHz, 1800 MHz, 2100 MHz, 700 MHz, 2600 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Protocol	4G LTE CAT-4 (AT&T/Verizon)
RF Family/Standard	Cellular
Serial Interfaces	USB
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	3.3 V

MTSMC-L4 Series

Part	Protocol	Data Rate	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Serial Interfaces	RF Family/Standard	Mounting Type	Current - Receiving	Current - Transmitting
Multi-Tech Systems Inc. MTSMC-L4E1-SP	4G LTE CAT-3	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	700 MHz 800 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	Serial	Cellular Navigation	Through Hole
Multi-Tech Systems Inc. MTSMC-L4G1-U-SP	4G LTE CAT-4 (AT&T/Verizon)	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	1.7 GHz 2.3 GHz 2.5 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	USB	Cellular	Through Hole	46 mA	46 mA
Multi-Tech Systems Inc. MTSMC-L4G1	4G LTE CAT-4 (AT&T/Verizon)	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	1.7 GHz 2.3 GHz 2.5 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	Serial	Cellular	Through Hole	46 mA	46 mA
Multi-Tech Systems Inc. MTSMC-L4E1-U-SP	4G LTE CAT-3	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	700 MHz 800 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	USB	Cellular Navigation	Through Hole
Multi-Tech Systems Inc. MTSMC-L4G1-U	4G LTE CAT-4 (AT&T/Verizon)	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	1.7 GHz 2.3 GHz 2.5 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	USB	Cellular	Through Hole	46 mA	46 mA
Multi-Tech Systems Inc. MTSMC-L4E1-U	4G LTE CAT-3	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	700 MHz 800 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	USB	Cellular Navigation	Through Hole
Multi-Tech Systems Inc. MTSMC-L4G1-SP	4G LTE CAT-4 (AT&T/Verizon)	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	1.7 GHz 2.3 GHz 2.5 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	Serial	Cellular	Through Hole	46 mA	46 mA
Multi-Tech Systems Inc. MTSMC-L4E1-U.R1-SP	4G LTE CAT-3	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	700 MHz 800 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	USB	Cellular Navigation	Through Hole
Multi-Tech Systems Inc. MTSMC-L4E1.R1	4G LTE CAT-3	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	700 MHz 800 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	Serial	Cellular Navigation	Through Hole
Multi-Tech Systems Inc. MTSMC-L4E1.R1-SP	4G LTE CAT-3	150 Mbps	Antenna Not Included U.FL	5 V	3.3 V	700 MHz 800 MHz 900 MHz 1800 MHz 2100 MHz 2600 MHz	85 °C	-40 °C	Module	Serial	Cellular Navigation	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MTSMC-L4 Series

Cellular 4G LTE CAT-4 (AT&T/Verizon) Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz Antenna Not Included, U.FL Through Hole

Documents

Technical documentation and resources
