WLS15XWR0500DSQP

Active

BANNER ENGINEERING

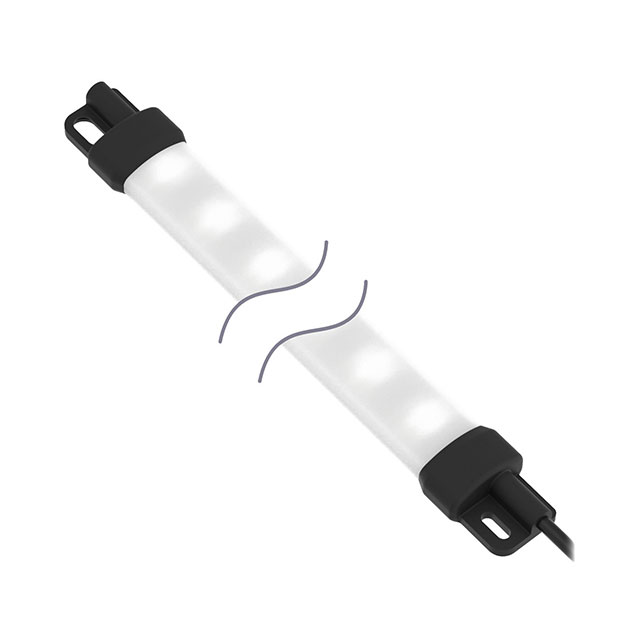

DUAL COLOR LIGHT STRIP 500MM

Search across all available documentation for this part.

Active

BANNER ENGINEERING

DUAL COLOR LIGHT STRIP 500MM

Technical Specifications

Parameters and characteristics commom to parts in this series

DUAL COLOR LIGHT STRIP 220MM

Part	Housing Material	Termination Style	Length	Length	Profile (W x H) [x]	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [y]	Luminous Flux [custom]	Luminous Flux [custom]	Ingress Protection	Illumination Color	Operating Temperature [Min]	Operating Temperature [Max]	Lens Type	Approval Agency	Voltage - Supply [Max]	Voltage - Supply [Min]	Length [x]	Length [x]	Luminous Flux
BANNER ENGINEERING WLS15XWR0220DSQP	Aluminum (Al)	Cable with Connector (M12)	8.66 in	220 mm	1.2 "	30.6 mm	0.61 "	15.5 mm	55 lm	175 lm	IP66/IP67	Red, White	-40 °C	60 °C	Diffused, Flat	CE, cULus	24 V	12 V
BANNER ENGINEERING WLS15XWR0360DSQP	Aluminum (Al)	Cable with Connector (M12)			1.2 "	30.6 mm	0.61 "	15.5 mm	110 lm	350 lm	IP66/IP67	Red, White	-40 °C	60 °C	Diffused, Flat	CE, cULus	24 V	12 V	360 mm	14.17 in
BANNER ENGINEERING WLS15XWR1200DSQP	Aluminum (Al)	Cable with Connector (M12)		1200 mm	1.2 "	30.6 mm	0.61 "	15.5 mm	440 lm	1400 lm	IP66/IP67	Red, White	-40 °C	60 °C	Diffused, Flat	CE, cULus	24 V	12 V		47.24 in
BANNER ENGINEERING WLS15XWR0920DSQP	Aluminum (Al)	Cable with Connector (M12)			1.2 "	30.6 mm	0.61 "	15.5 mm	330 lm	1050 lm	IP66/IP67	Red, White	-40 °C	60 °C	Diffused, Flat	CE, cULus	24 V	12 V	920 mm	36.22 "
BANNER ENGINEERING WLS15XWR0640DSQP	Aluminum (Al)	Cable with Connector (M12)			1.2 "	30.6 mm	0.61 "	15.5 mm	220 lm	700 lm	IP66/IP67	Red, White	-40 °C	60 °C	Diffused, Flat	CE, cULus	24 V	12 V	640 mm	25.2 "
BANNER ENGINEERING WLS15XWR0500DSQP	Aluminum (Al)	Cable with Connector (M12)	19.69 "	50 cm	1.2 "	30.6 mm	0.61 "	15.5 mm			IP66/IP67	Red, White	-40 °C	60 °C	Diffused, Flat	CE, cULus	24 V	12 V			165 lm, 525 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 173.00
Newark	Each	1	$ 176.00

General part information

DUAL COLOR LIGHT STRIP 500MM

Technical documentation and resources
