AMPH-874S-050

Active

Pactech

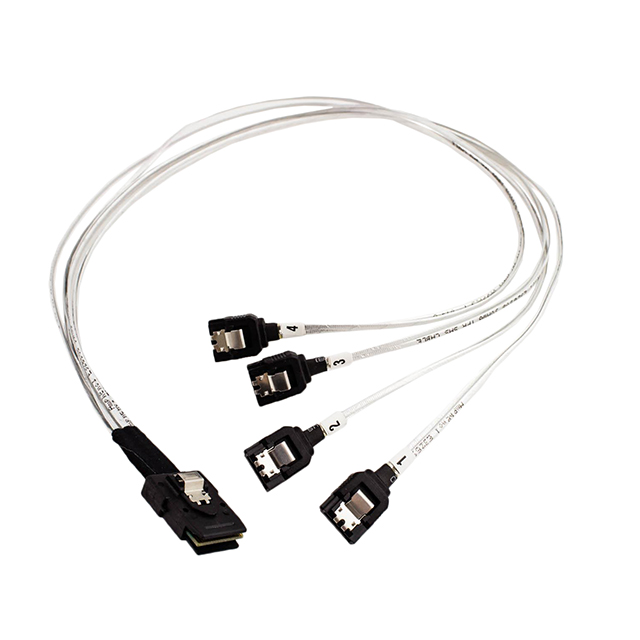

AMPH MINISAS TO 4X SATA 0.5M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMPH-874S-050

Active

Pactech

AMPH MINISAS TO 4X SATA 0.5M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 29.69

Description

General part information

AMPH-874S Series

36, 7 (4) Position MiniSAS, SATA Plug to Receptacle 1.64' (500.00mm) Black Shielded

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMPH-874S-050	AMPH-874S Series

Cable Connectors	miniSAS, SATA	miniSAS, SATA, SATA (4), MiniSAS Low Profile, SATA 4x, SATA Right Angle
Cable Connectors	-	4
Cable Type	Flat	Flat
Color	Black	Black
Connector Type	Plug to Receptacle	Plug to Receptacle, Plug to Receptacle (4)
Fastening Type	Latch Lock	Latch Lock, Push-Pull
Features	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable, SATA Connectors, Amphenol SFF-8087
Frequency - Max [Max]	4.5 GHz	4.5 - 6 GHz
Gender	Male to Female	Male to Female
Length	-	650 - 975 mm
Length	-	2.13 - 3.2 ft
Length [x]	1.64 ft	1.64 - 3.28 ft
Length [x]	500 mm	0.75 - 875 mm
Number of Positions	36, 7	7 - 36
Number of Positions	4	4
Shielding	Shielded	Shielded
Usage	Internal	Internal
Wire Gauge	30 AWG	30 AWG

AMPH-874S Series

AMPH MINISAS TO 4X SATA 0.5M

Part	Shielding	Connector Type	Gender	Number of Positions	Number of Positions	Wire Gauge	Cable Connectors	Usage	Features	Frequency - Max [Max]	Length [x]	Length [x]	Color	Cable Type	Fastening Type	Length	Length	Cable Connectors
Pactech AMPH-874S-050	Shielded	Plug to Receptacle	Male to Female	7, 36	4	30 AWG	miniSAS, SATA	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable	4.5 GHz	1.64 ft	500 mm	Black	Flat	Latch Lock
Pactech AMPH-874S-050-NL	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA (4)	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		1.64 ft	500 mm	Black	Flat	Push-Pull
Pactech AMPH-874S26-075	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA (4)	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		2.46 ft	0.75 m	Black	Flat	Latch Lock, Push-Pull
Pactech AMPH-874S-100	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		3.28 ft	1 m	Black	Flat	Latch Lock
Pactech AMPH-874S-STEP-950LP	Shielded	Plug to Receptacle	Male to Female	7, 36	4	30 AWG	MiniSAS Low Profile, SATA 4x	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable	4.5 GHz			Black	Flat	Latch Lock, Push-Pull	950 mm	3.12 ft
Pactech AMPH-874S-STEP-925-LP	Shielded	Plug to Receptacle (4)	Male to Female	7, 36	4	30 AWG	MiniSAS Low Profile, SATA 4x	Internal	6Gbps SAS2.1, Amphenol SFF-8087, SATA Connectors	6 Gbps			Black	Flat	Latch Lock, Push-Pull
Pactech AMPH-874S-STEP-575	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA (4)	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		1.89 ft	575 mm	Black	Flat	Latch Lock
Pactech AMPH-874S-RT-SB-650	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA Right Angle	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable				Black	Flat	Latch Lock, Push-Pull	650 mm	2.13 ft	4
Pactech AMPH-874S-STEP-875	Shielded	Plug to Receptacle	Male to Female	7, 36	4		miniSAS, SATA (4)	Internal	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable		2.87 ft	875 mm	Black	Flat	Latch Lock, Push-Pull
Pactech AMPH-874S-STEP-975-LP-A	Shielded	Plug to Receptacle (4)	Male to Female	7, 36	4	30 AWG	MiniSAS Low Profile, SATA 4x	Internal	6Gbps SAS2.1, Amphenol SFF-8087, SATA Connectors	6 Gbps			Black	Flat	Latch Lock, Push-Pull	975 mm	3.2 ft
