3-829587-0

Obsolete

TE Connectivity AMP Connectors

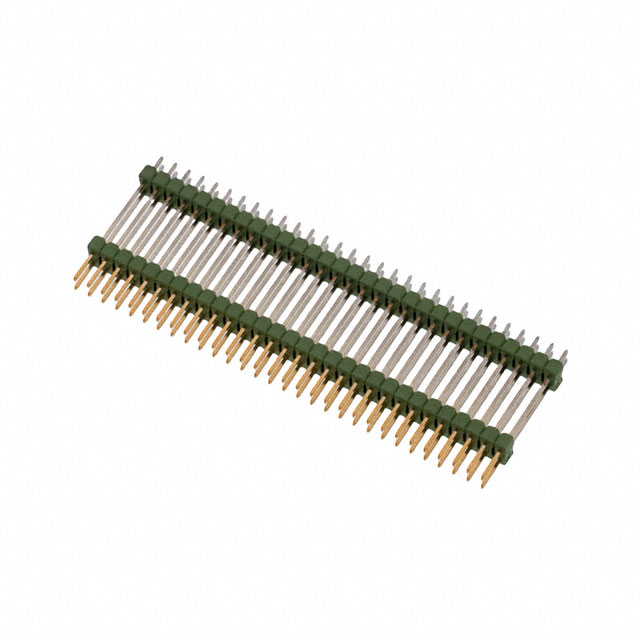

CONN HDR 60POS 0.1 STACK T/H

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HDR 60POS 0.1 STACK T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-829587-0	829587 Series

Color	Green	Green
Contact Finish - Post (Mating)	Gold	Gold
Contact Finish Thickness - Post (Mating)	Flash	Flash
Length - Overall Pin [x]	1.087 in	1.087 in
Length - Overall Pin [x]	27.6 mm	27.6 mm
Length - Post (Mating) [x]	5.9 mm	5.9 mm
Length - Post (Mating) [x]	0.232 in	0.232 in
Length - Stack Height [z]	18.5 mm	18.5 mm
Length - Stack Height [z]	0.728 in	0.728 in
Length - Tail [x]	0.126 in	0.126 in
Length - Tail [x]	3.2 mm	3.2 mm
Mounting Type	Through Hole	Through Hole
Number of Positions	60	40 - 60
Number of Rows	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in
Termination	Solder	Solder

CONN HDR 40POS 0.1 STACK T/H

Part	Pitch [x]	Pitch [x]	Color	Termination	Number of Positions	Number of Rows	Length - Stack Height [z]	Length - Stack Height [z]	Contact Finish Thickness - Post (Mating)	Mounting Type	Length - Tail [x]	Length - Tail [x]	Row Spacing [x]	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish - Post (Mating)
TE Connectivity AMP Connectors 2-829587-0	2.54 mm	0.1 in	Green	Solder	40	2	18.5 mm	0.728 in	Flash	Through Hole	0.126 in	3.2 mm	0.1 in	2.54 mm	5.9 mm	0.232 in	1.087 in	27.6 mm	Gold
TE Connectivity AMP Connectors 2-829587-6	2.54 mm	0.1 in	Green	Solder	52	2	18.5 mm	0.728 in	Flash	Through Hole	0.126 in	3.2 mm	0.1 in	2.54 mm	5.9 mm	0.232 in	1.087 in	27.6 mm	Gold
TE Connectivity AMP Connectors 3-829587-0	2.54 mm	0.1 in	Green	Solder	60	2	18.5 mm	0.728 in	Flash	Through Hole	0.126 in	3.2 mm	0.1 in	2.54 mm	5.9 mm	0.232 in	1.087 in	27.6 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
