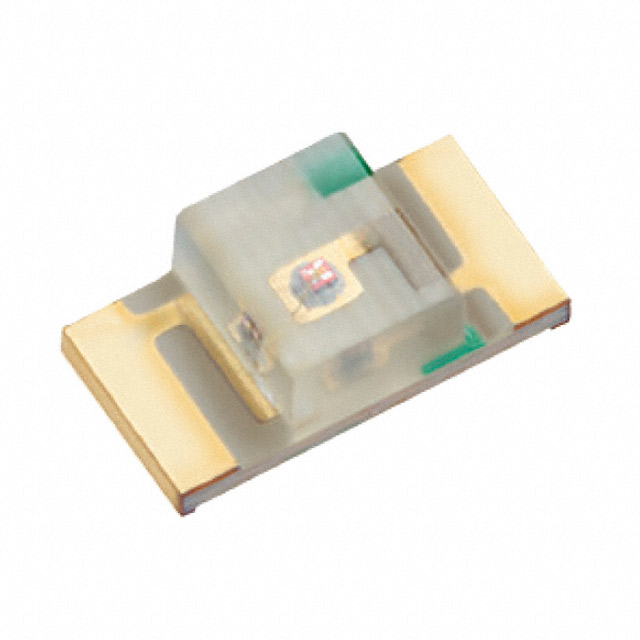

XZFBB55W-2

Active

SunLED

LED BLUE CLEAR 2SMD BOTTOM ENT

Search across all available documentation for this part.

Active

SunLED

LED BLUE CLEAR 2SMD BOTTOM ENT

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Lens Style	Current - Test	Mounting Type	Lens Transparency	Supplier Device Package	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Lens Color	Package / Case	Viewing Angle	Configuration	Color	Wavelength - Peak	Height (Max) [Max] [z]	Lens Size [diameter]
SunLED XZFBB55W-1	470 nm	1.6 mm	3.2 mm	178 mcd	Rectangle with Flat Top	20 mA	Surface Mount	Clear	2-SMD	1.9 mm	1.6 mm	3.3 V	Colorless	1206 (3016 Metric)	120 °	Standard	Blue	465 nm
SunLED XZFBB55W-3	470 nm	1.6 mm	3.2 mm	1195 mcd	Round with Domed Top	20 mA	Surface Mount	Clear	2-SMD			3.3 V	Colorless	1206 (3216 Metric)	35 °	Standard	Blue	465 nm	1.8 mm	1.6 mm
SunLED XZFBB55W-2	470 nm	1.6 mm	3.2 mm	178 mcd	Rectangle with Flat Top	20 mA	Surface Mount Bottom Entry	Clear	2-SMD	1.4 mm	1.6 mm	3.3 V	Colorless	1206 (3216 Metric)	120 °	Standard	Blue	465 nm	1.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 470nm LED Indication - Discrete 3.3V 1206 (3216 Metric)
