09100053105

Obsolete

HARTING Technology Group

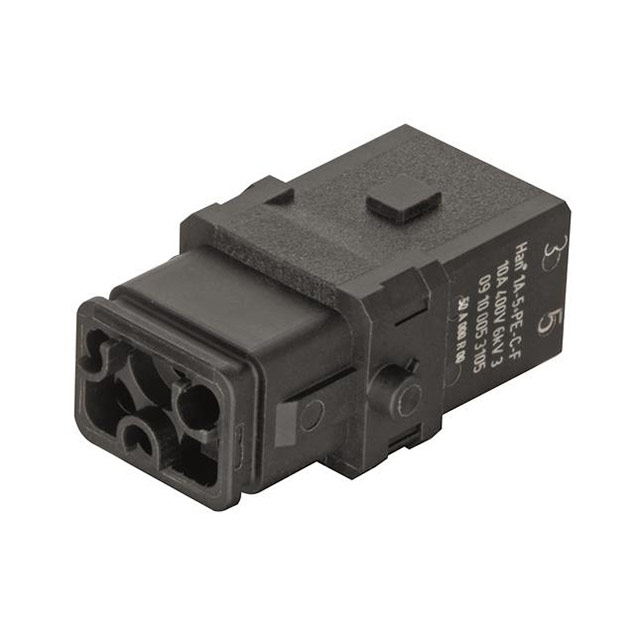

1A 5+PE FEMALE CRIMP INSERT FOR

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

1A 5+PE FEMALE CRIMP INSERT FOR

Technical Specifications

Parameters and characteristics for this part

Specification	09100053105

Color	Black
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Number of Positions	5+Ground
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Size	1 A
Termination Style	Crimp
Voltage Rating	400 V

Part	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Size	Color	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Housing Material	Voltage Rating	Contact Type	Connector Type
HARTING Technology Group 09100053105	Crimp	-30 ░C	90 °C	Female	1 A	Black	10 A	5+Ground	UL94 V-0	Polyamide (PA) Nylon	400 V
HARTING Technology Group 09100053000	Crimp	-30 ░C	90 °C	Male	1 A	Black	10 A	5+Ground	UL94 V-0	Polyamide (PA) Nylon	400 V
HARTING Technology Group 09100053006	Crimp	-30 ░C	90 °C	Male	1 A	Black	10 A	5+Ground	UL94 V-0	Polyamide (PA) Nylon	400 V	Han® D	Insert without Contacts
HARTING Technology Group 09100053100	Crimp	-30 ░C	90 °C	Female	1 A	Black	10 A	5+Ground	UL94 V-0	Polyamide (PA) Nylon	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Female Insert Black 5+Ground Position Crimp
