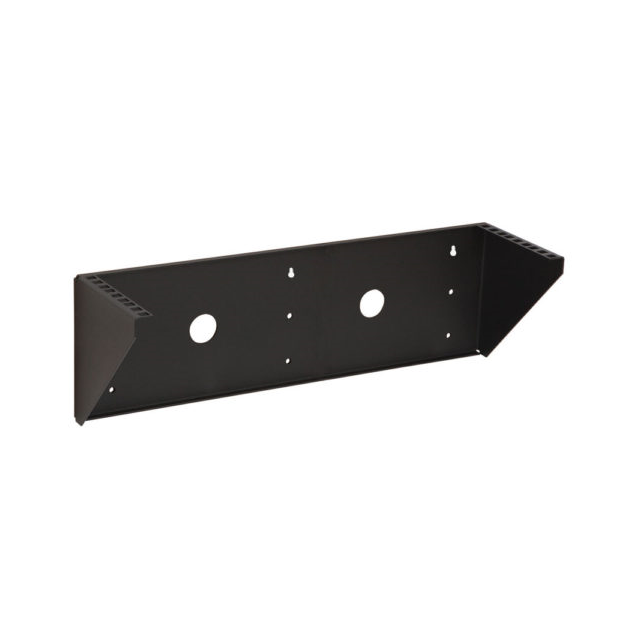

1916-2-100-3

Active

Kendall Howard

3U V-RACK

Search across all available documentation for this part.

Active

Kendall Howard

3U V-RACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1916-2-100-3	1916-2 Series

Color	Black	Black
For Use With/Related Products	19" Panel Width Racks	19" Panel Width Racks
Material	Cold Roll Steel (CRS)	Cold Roll Steel (CRS)
Size / Dimension	-	152.4 mm
Size / Dimension	-	6 "
Size / Dimension	-	98.81 - 187.71 mm
Size / Dimension	-	3.89 - 7.39 "
Size / Dimension	-	488.95 mm
Size / Dimension	-	19.25 "
Type	Shelf, Mount	Shelf, Mount
Ventilation	Non-Vented	Non-Vented
Weight	1.9 kg	1.8 - 2.2 kg
Weight	4.2 lbs	4 - 4.8 lbs

2U V-RACK

Part	Material	For Use With/Related Products	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Type	Color	Weight	Weight	Ventilation
Kendall Howard 1916-2-100-2	Cold Roll Steel (CRS)	19" Panel Width Racks	152.4 mm	6 "	98.81 mm	3.89 "	488.95 mm	19.25 "	Shelf, Mount	Black	4 lbs	1.8 kg	Non-Vented
Kendall Howard 1916-2-101-02	Cold Roll Steel (CRS)	19" Panel Width Racks	152.4 mm	6 "	98.81 mm	3.89 "	488.95 mm	19.25 "	Shelf, Mount	Black	4 lbs	1.8 kg	Non-Vented
Kendall Howard 1916-2-101-03	Cold Roll Steel (CRS)	19" Panel Width Racks							Shelf, Mount	Black	4.4 lbs	2 kg	Non-Vented
Kendall Howard 1916-2-100-3	Cold Roll Steel (CRS)	19" Panel Width Racks							Shelf, Mount	Black	4.2 lbs	1.9 kg	Non-Vented
Kendall Howard 1916-2-101-04	Cold Roll Steel (CRS)	19" Panel Width Racks	152.4 mm	6 "	187.71 mm	7.39 in	488.95 mm	19.25 "	Shelf, Mount	Black	4.8 lbs	2.2 kg	Non-Vented

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cold Roll Steel (CRS) Shelf, Mount 19.250" L x 6.000" W x 5.640" H (488.95mm x 152.40mm x 143.26mm) Black
