1172L SL005

Active

ALPHA WIRE

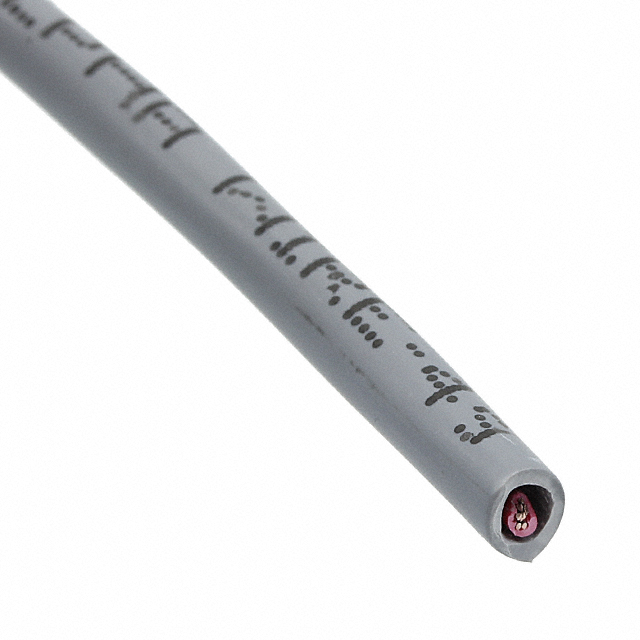

MULTI-CONDUCTOR CABLE LOW SMOKE ZERO HALOGEN 2CONDUCTORS 22AWG 4.06MM 300VAC SLATE 30.48M SPOOL

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-CONDUCTOR CABLE LOW SMOKE ZERO HALOGEN 2CONDUCTORS 22AWG 4.06MM 300VAC SLATE 30.48M SPOOL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1172L SL005	1172L Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.161 "	0.161 "
Jacket (Insulation) Diameter [diameter]	4.09 mm	4.09 mm
Jacket (Insulation) Thickness	0.025 in	0.025 in
Jacket (Insulation) Thickness	0.635 mm	0.635 mm
Jacket Color	Slate	Slate
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	2	2
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

MULTI-CONDUCTOR CABLE LOW SMOKE ZERO HALOGEN 2CONDUCTORS 22AWG 4.06MM 300VAC SLATE 30.48M SPOOL

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Voltage	Wire Gauge	Jacket Color	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Number of Conductors	Cable Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]
ALPHA WIRE 1172L SL005	0.025 in	0.635 mm	30.5 m	100 ft	300 V	22 AWG	Slate	Low Smoke Zero Halogen (LSZH)	0.161 "	4.09 mm	Communication, Control	2	Multi-Conductor	Copper, Tinned	7	30 AWG
ALPHA WIRE 1172L SL002	0.025 in	0.635 mm	152.4 m	500 '	300 V	22 AWG	Slate	Low Smoke Zero Halogen (LSZH)	0.161 "	4.09 mm	Communication, Control	2	Multi-Conductor	Copper, Tinned	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
