ZM160C10A01

Active

Honeywell Sensing and Productivity Solutions

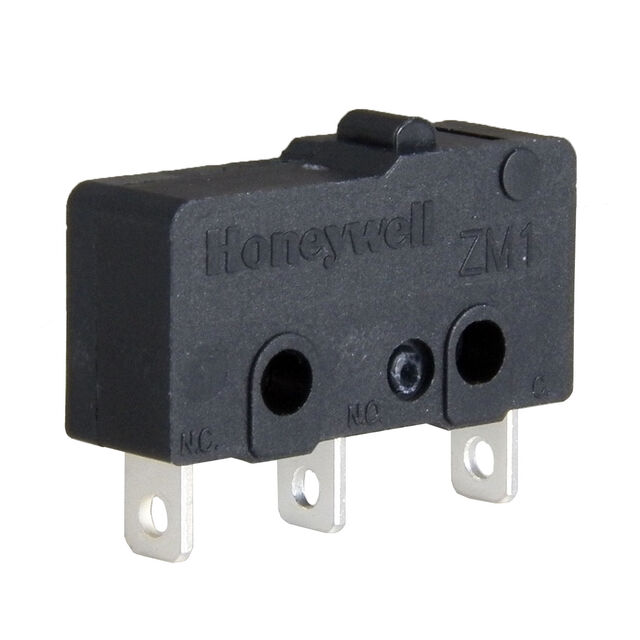

SWITCH SNAP ACTION SPDT 6A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 6A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZM160C10A01	ZM160 Series

Actuator Type	Round (Pin Plunger)	Lever, Straight, Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	6 A	6 A
Differential Travel	0.008 in	0.008 in
Differential Travel	0.2 mm	0.2 mm
Ingress Protection	IP40	IP40
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	150 gf	150 gf
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.4 mm	0.4 - 0.6 mm
Overtravel	0.015 "	0.015 - 0.025 "
Pretravel	1.14 mm	1.14 - 4.8 mm
Pretravel	0.045 in	0.045 - 0.188 in
Release Force	25 gf	1 - 25 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V

SWITCH SNAP ACTION SPDT 6A 125V

Part	Switch Function	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Actuator Type	Current Rating (Amps)	Ingress Protection	Overtravel	Overtravel	Mechanical Life	Release Force	Pretravel	Pretravel	Operating Force	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions ZM160D20S501-A	On-Mom	Chassis Mount	125 V	125 °C	-40 °C	SPDT	Solder Lug	Lever, Straight	6 A	IP40	0.6 mm	0.025 "	5000000 Cycles	1 gf	0.188 in	4.8 mm
Honeywell Sensing and Productivity Solutions ZM160C10A01	On-Mom	Chassis Mount	125 V	125 °C	-40 °C	SPDT	Solder Lug	Round (Pin Plunger)	6 A	IP40	0.4 mm	0.015 "	5000000 Cycles	25 gf	0.045 in	1.14 mm	150 gf	0.008 in	0.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.62

General part information

Switch SPDT Chassis Mount
